Repair Procedures: Inspection
- Inspect diaphragm spring wear which is in contact with clutch release bearing.
- Check the clutch cover and disc surface for wear or cracks.
- Check the clutch disc facing for slipping or oil marks.

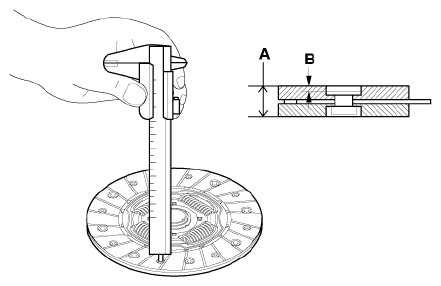

- Measure the depth from the clutch lining surface to rivet. If the measured value is less than the specification below, replace it.
Standard value
Clutch disc thickness (A)[when free]: 8.3 ± 0.3 mm (0.3268 ± 0.0118 in.)
Clutch disc rivet depth (B): 1.1 mm (0.0433 in.)
