Repair Procedures: Removal

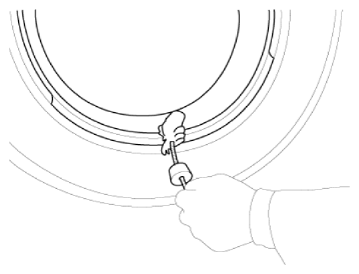

Remove the valve core and deflate the tire.

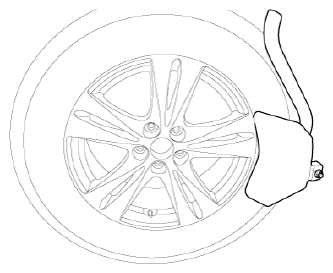

Remove the side of the tire bead area from the wheel using tire changing machine.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
- Avoid tire/tool contact with the valve on dismount.
- Dismount should end near the valve.

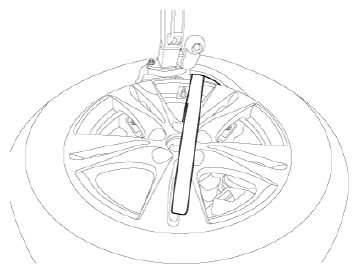

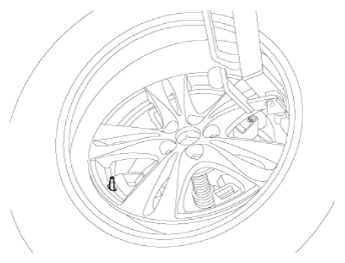

Rotate the wheel clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

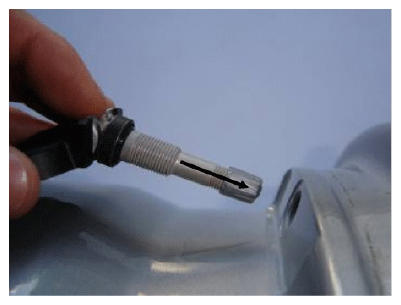

Check for deviation of the valve (air inlet portion in silver) during transportation and assemble the valve in the indented state from the original position (metal brackets).
To prevent the valve from rotating and deviating the set position while the nut is being tightened, push the valve into the set position (inside the metal brackets). Tighten to the specified torque (8 Nm) and do not reuse the nut.
Push the valve into the valve hole so that the seal washer touches the rim.

Courtesy of KIA MOTORS AMERICA, INC.

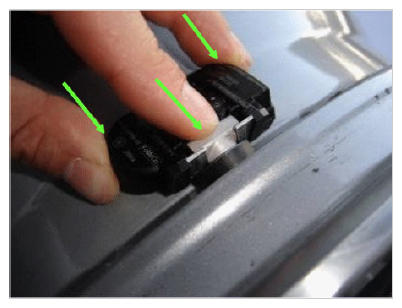

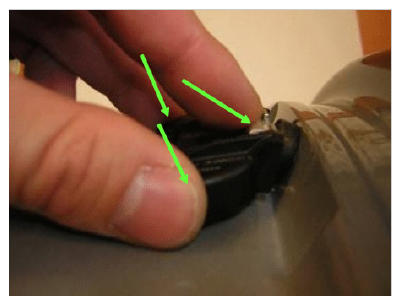

While holding the housing with two fingers, push in the valve in the axial direction with another finger.

Courtesy of KIA MOTORS AMERICA, INC.
The housing laser marking should be visible.

Courtesy of KIA MOTORS AMERICA, INC.

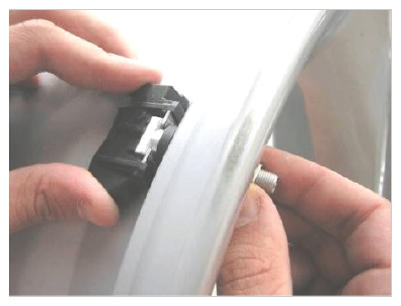

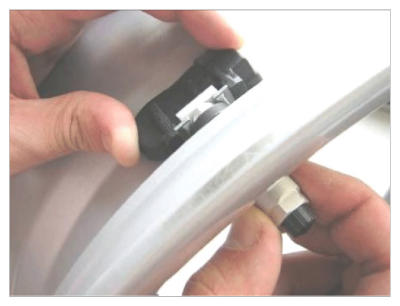

When the valve is fully inserted, start tightening the nut several times by hand while keeping the sensor contacting the rim.

Courtesy of KIA MOTORS AMERICA, INC.
Mount the nut using a tool while maintaining the position of the valve and the sensor.

Courtesy of KIA MOTORS AMERICA, INC.
Apply tire soap or lubrication to the top and bottom tire beads.

Courtesy of KIA MOTORS AMERICA, INC.

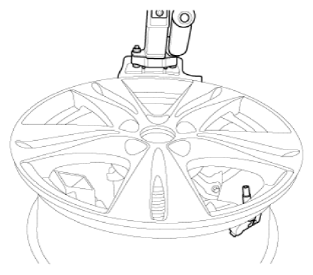

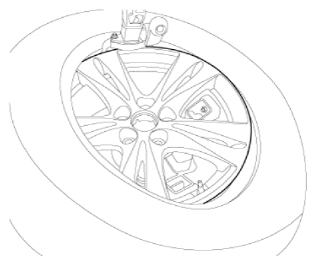

To fit the bottom bead, position the sensor at the 5 o'clock position relative to the head on the tire changing machine.

Courtesy of KIA MOTORS AMERICA, INC.
Place the tire on the rim so the bottom bead touches the edge of the rim after the sensor (@6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.

Courtesy of KIA MOTORS AMERICA, INC.

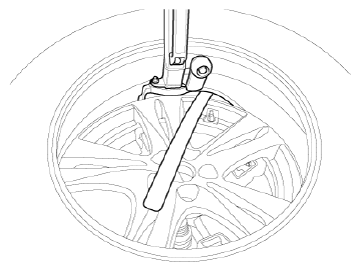

After bottom bead is on tire, rotate the rim until the sensor is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.

Courtesy of KIA MOTORS AMERICA, INC.

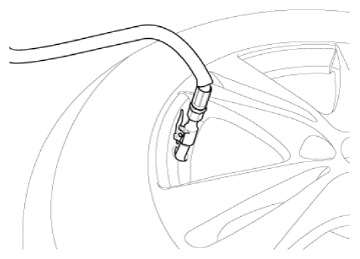

Inflate the tire until both beads seat.

Courtesy of KIA MOTORS AMERICA, INC.
In case of TPMS sensor failure, TPMS sensor learning is needed. After replacing faulty sensor with a new unit, perform TPMS sensor learning.
