Repair Procedures: Inspection

Inspection after installing TPMS sensor

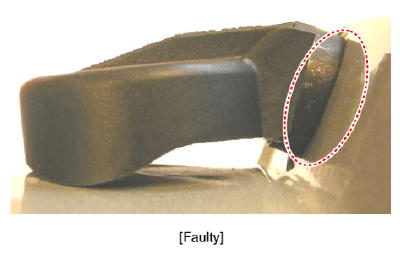

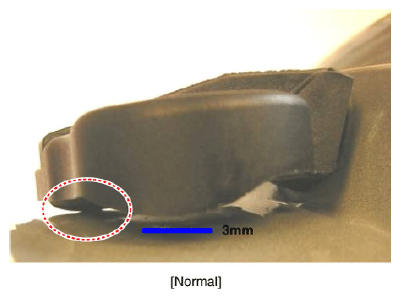

1. Seal washer must be compressed on the outer surface of rim hole.
2. The lower part of the valve must locate in the set position (within metal bracket) of the housing.
3. One or more points of the housing must be contacting the surface of the rim.
4. The mounting height of the housing must not exceed the sill of the rim.
