Diagnosis by using diagnostic device

The main contents of diagnostic method using diagnostic device are as follows:

Connect self-diagnosis connector (16 pins) located in the lower driver side crash pad to self-diagnostic device, and then turn on the self-diagnostic device after key is ON.
Select the "vehicle model" and "TPMS" on KDS vehicle selection screen, then select OK.

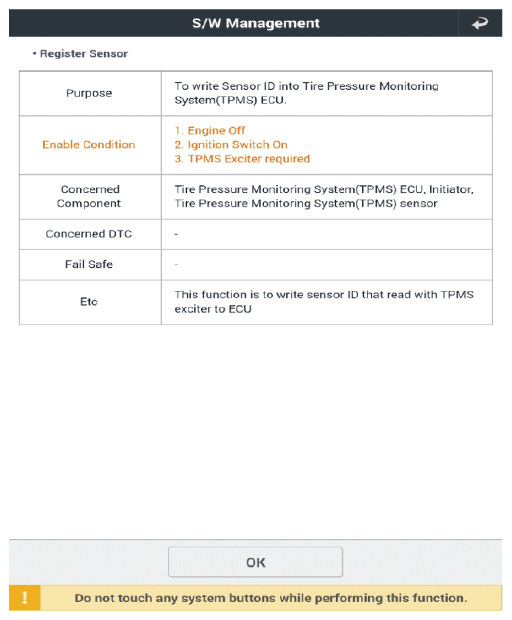

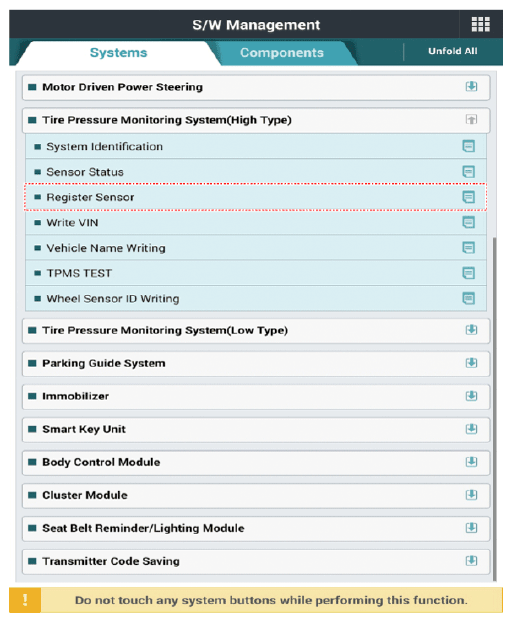

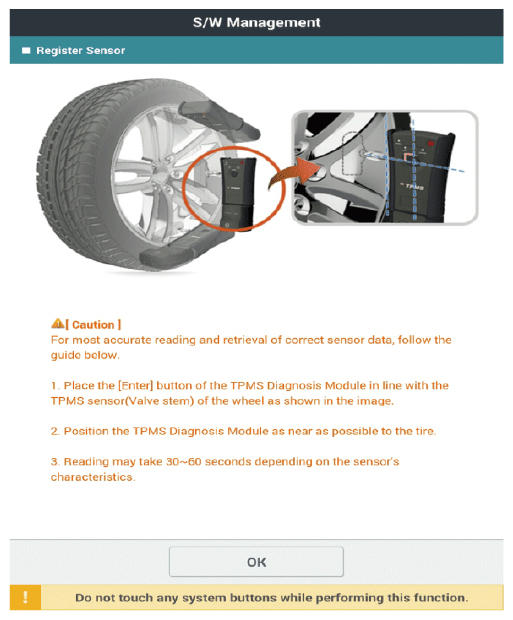

[Register Sensor Method 1]

Courtesy of KIA MOTORS AMERICA, INC.

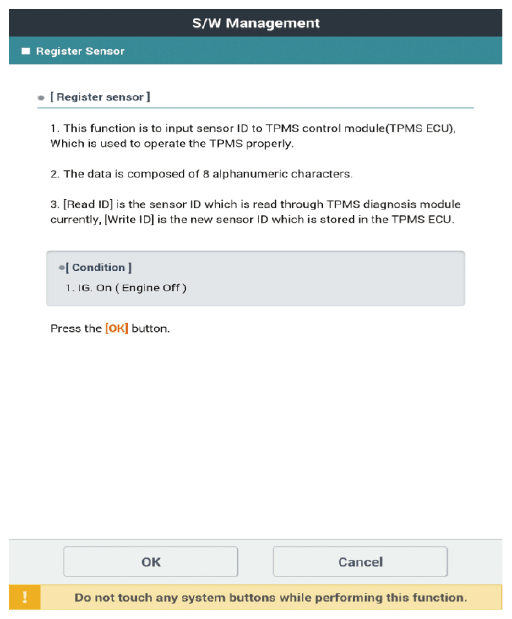

[Register Sensor Method 2]

Courtesy of KIA MOTORS AMERICA, INC.

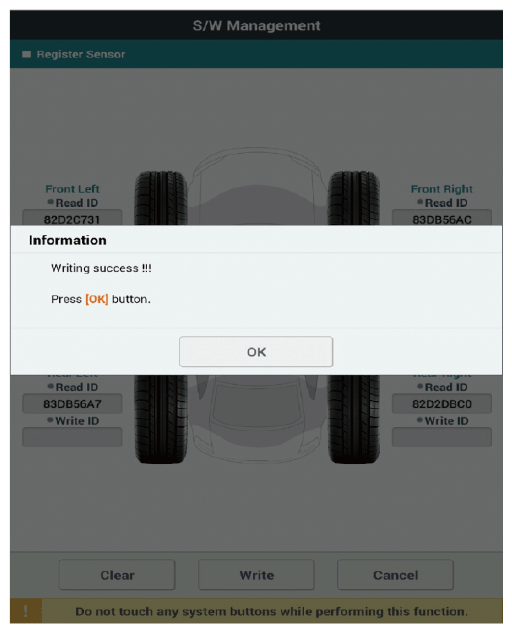

[Register Sensor Method 3]

Courtesy of KIA MOTORS AMERICA, INC.

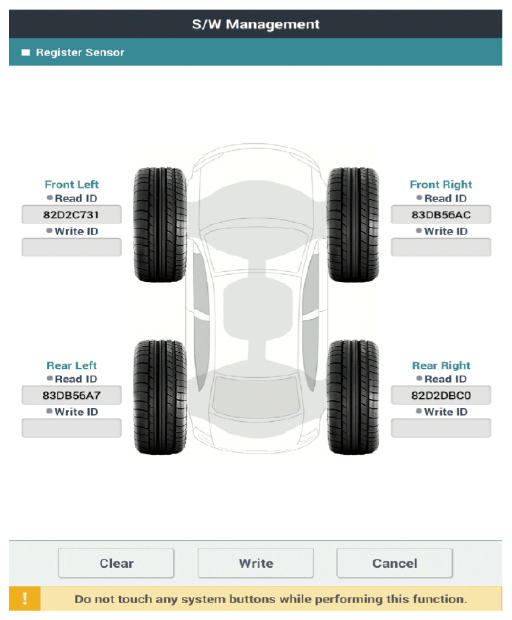

[Register Sensor Method 4]

Courtesy of KIA MOTORS AMERICA, INC.

[Register Sensor Method 5]

Courtesy of KIA MOTORS AMERICA, INC.

[Register Sensor Method 6]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Check that Write ID and Read ID are the same.
After successfully registering the sensor, perform "Sensor Wireless Information" to confirm that the sensor operates properly.

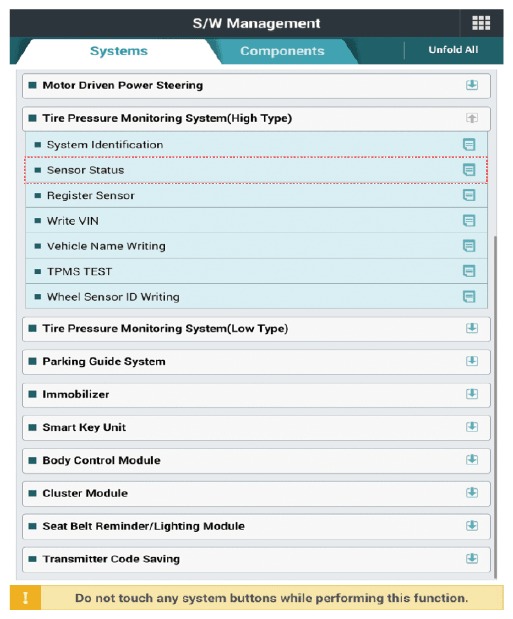

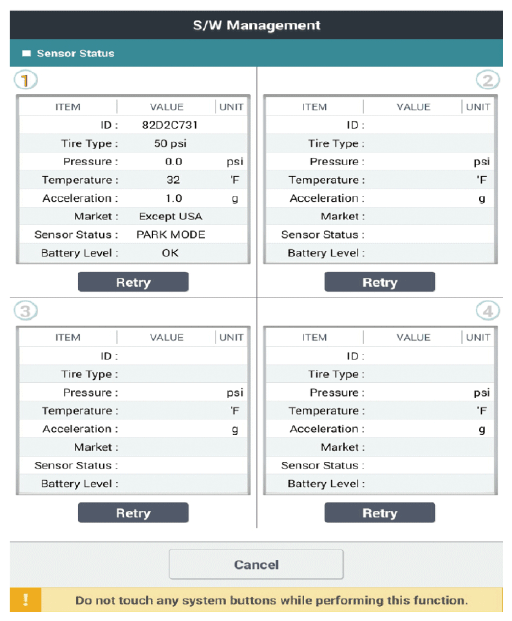

[Sensor Status Method 1]

Courtesy of KIA MOTORS AMERICA, INC.

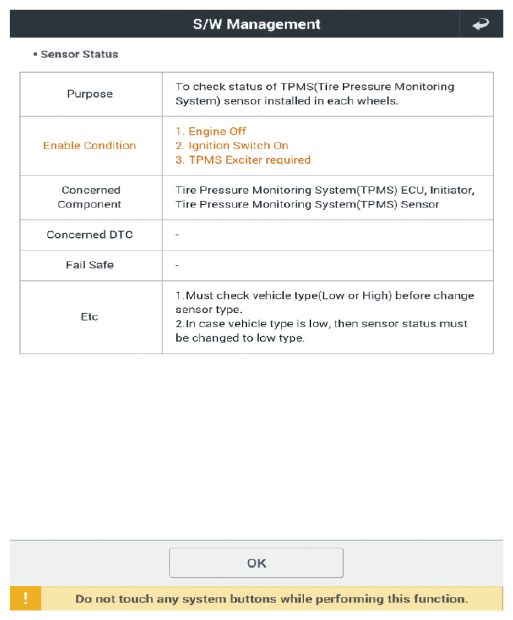

[Sensor Status Method 2]

Courtesy of KIA MOTORS AMERICA, INC.

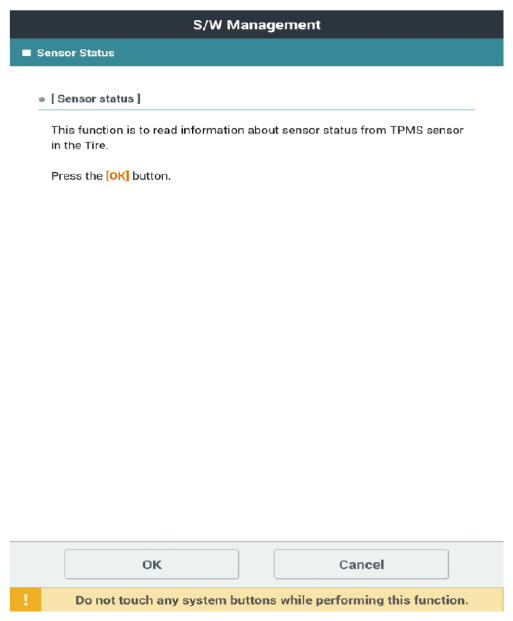

[Sensor Status Method 3]

Courtesy of KIA MOTORS AMERICA, INC.

[Sensor Status Method 4]

Courtesy of KIA MOTORS AMERICA, INC.

[Sensor Status Method 5]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Each entry must be checked for normal operation of each sensor.
After replacing the tires or sensors, check for proper operation of sensor after sensor registration process.
