Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

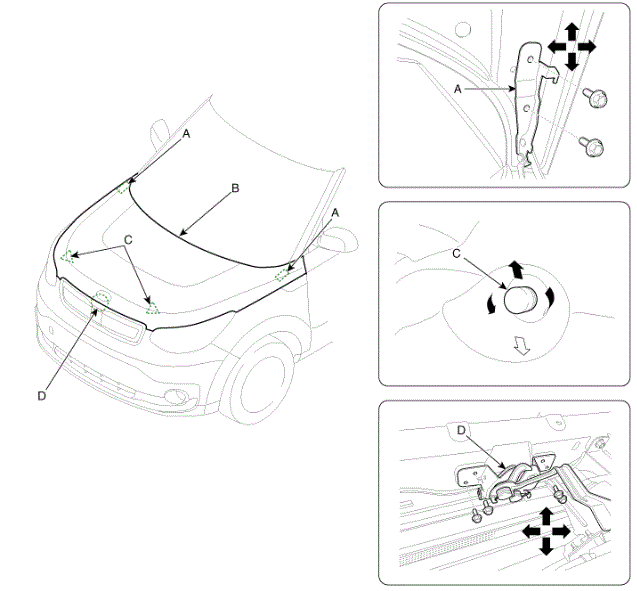

  1. After loosening the hinge (A) mounting bolt, adjust the hood (B) clearance by moving it up and down, or left and right.
  2. Adjust the hood height by turning the hood overslam bumpers (C).
  3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down, or left and right.
G12820314Courtesy of KIA MOTORS AMERICA, INC.
