Repair Procedures: Removal

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Disconnect the negative (-) battery terminal.

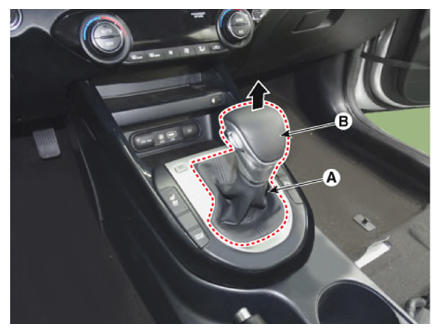

Remove the knob (B) by pulling them in the direction of the arrow after separating the boots (A) from the console upper cover.

Fig 1: Removing Knob
Courtesy of KIA MOTORS AMERICA, INC.

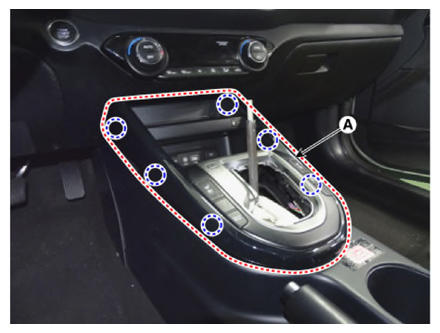

Remove console upper cover (A).

Fig 2: Locating Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

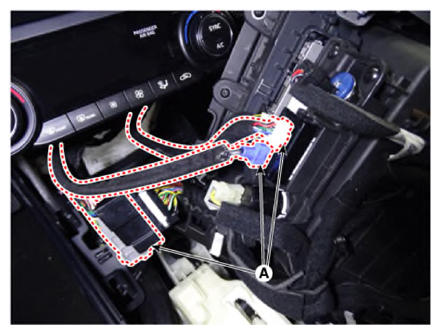

Disconnect the connector (A) from console upper cover.

Fig 3: Locating Console Upper Cover Connector
Courtesy of KIA MOTORS AMERICA, INC.

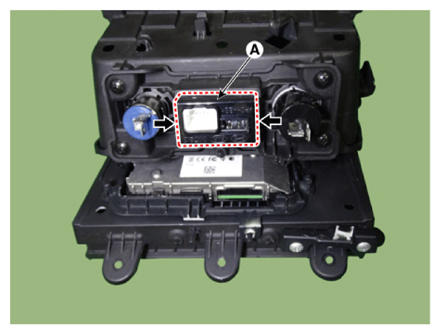

Remove the multimedia jack (A) after releasing the fixed hooks.

Fig 4: Releasing Multimedia Fixed Hooks
Courtesy of KIA MOTORS AMERICA, INC.
