Components And Components Location: Components

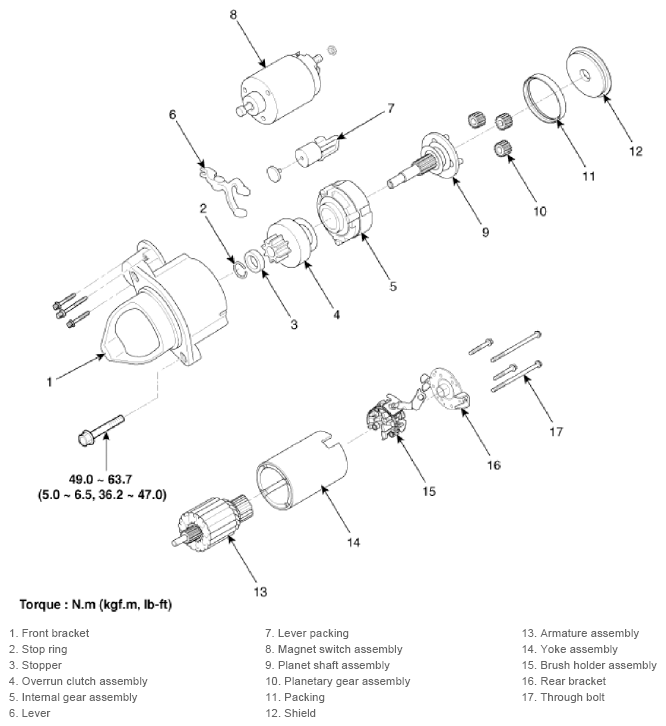

Fig 1: Starter Components Location With Torque Specification

G12792134

Courtesy of KIA MOTORS AMERICA, INC.
