Variant Coding Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Ignition switch "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W Management"  on GDS.
  5. Perform "Clutch Learning Reset" in "Vehicle S/W Management"  with GDS.
  6. Clear any DTCs stored in the system with GDS.

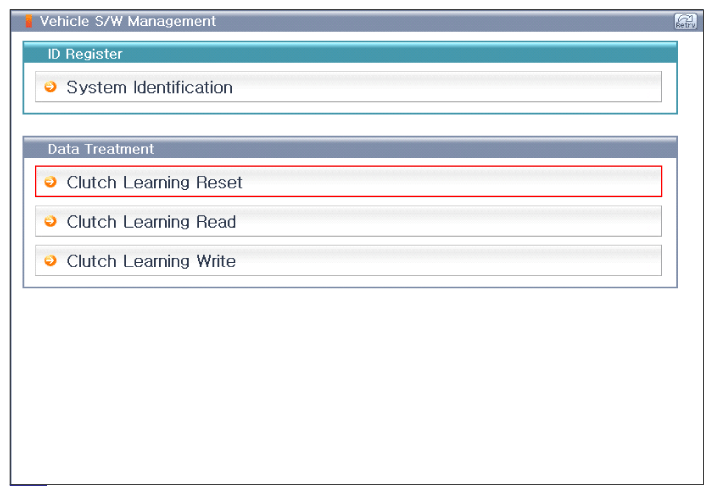

Fig 1: Screen Display - Vehicle S/W Management List
G12182065Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Screen Display - Clutch Learning Read 1
G12182066Courtesy of KIA MOTORS AMERICA, INC.

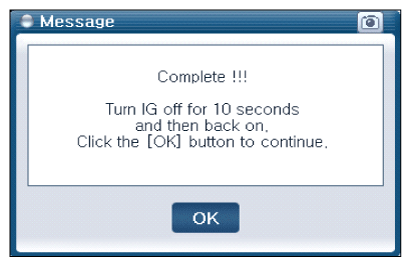

Fig 3: Screen Display - Clutch Learning Read 2
G12182067Courtesy of KIA MOTORS AMERICA, INC.
