Section 19 (Lighting System)
>>
Head Lamps
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

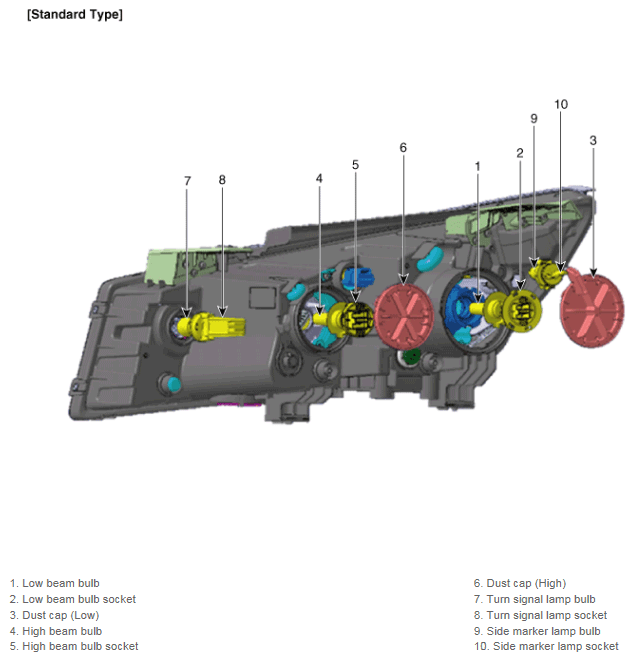

Fig 1: Head Lamps Components Location - Standard Type
Courtesy of KIA MOTORS AMERICA, INC.

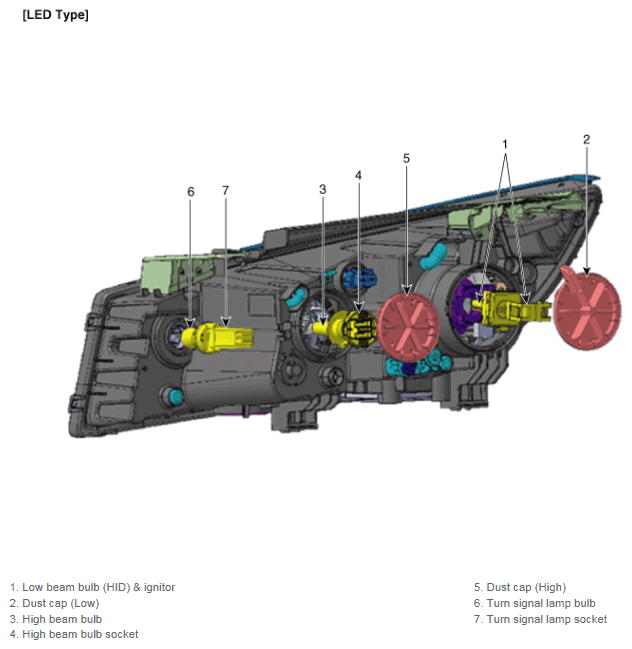

Fig 2: Head Lamps Components Location - LED Type
Courtesy of KIA MOTORS AMERICA, INC.
