Home >> Kia >> 2017 >> Soul + >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 2.0L >> Valve Body >> Components And Components Location >> Components

Components And Components Location: Components

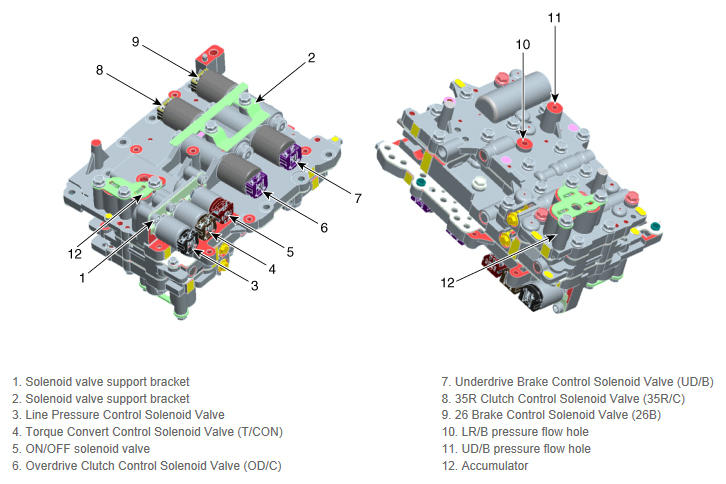

Fig 1: Valve Body Components Location

G12239570

Courtesy of KIA MOTORS AMERICA, INC.
