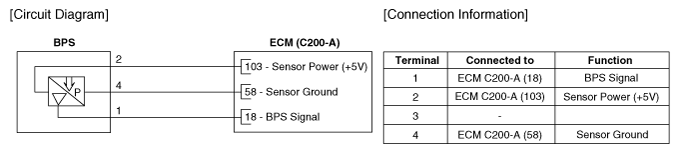

Home >> Kia >> 2017 >> Sorento EX, 2.0L Eng VIN 1, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L T >> Boost Pressure Sensor (BPS) >> Schematic Diagrams >> Circuit Diagram
