Circuit Diagram
Circuit Diagram

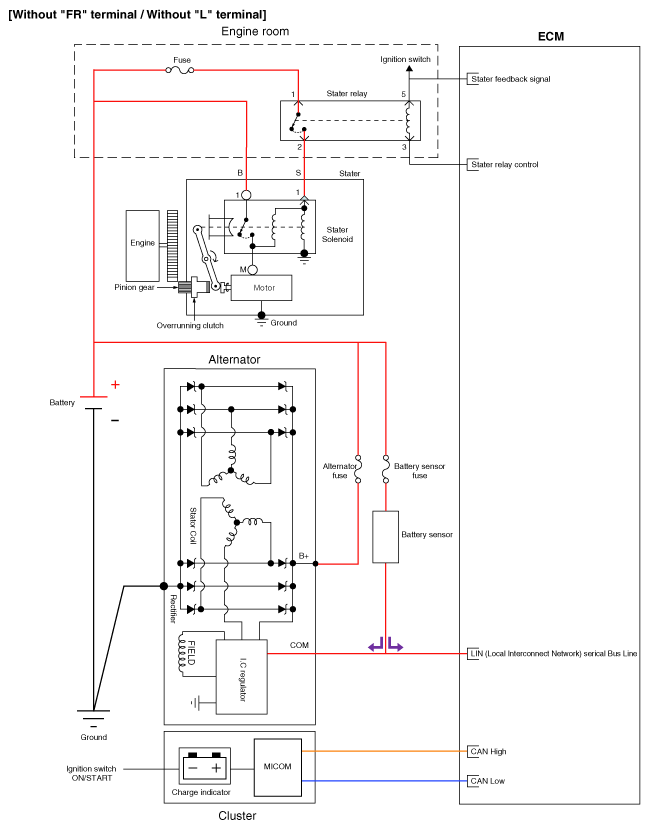

Fig 1: Charging System Circuit Diagram (Without FR/L Terminal)
Courtesy of KIA MOTORS AMERICA, INC.

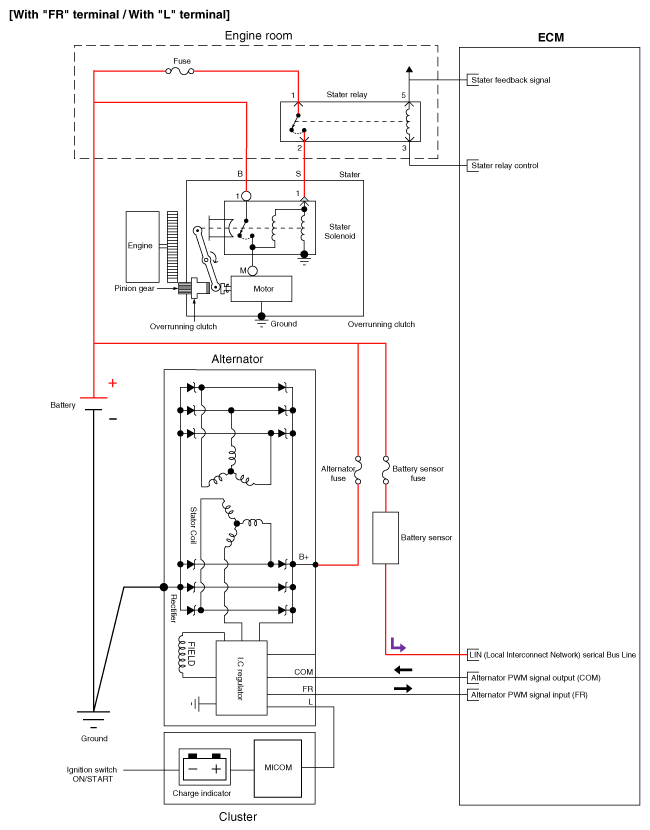

Fig 2: Charging System Circuit Diagram (With FR/L Terminal)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
