Repair Procedures: Replacement
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Separate the buckle wiring mounting clip.

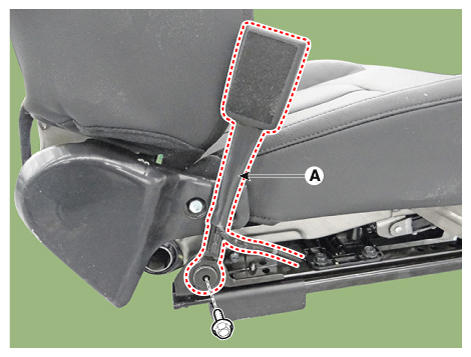

- After loosening the mounting bolt, remove the front seat belt buckle (A).
Tightening Torque:
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8 lb.ft)
- Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
