TPMS Inspection Method: Notes

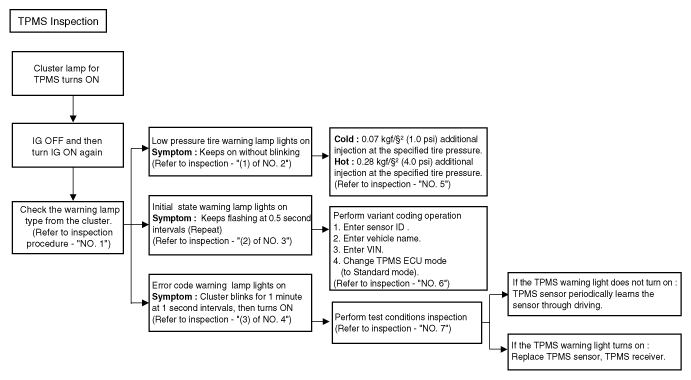

Fig 1: TPMS Inspection Flow Chart

G12163827

Courtesy of KIA MOTORS AMERICA, INC.
