Monitor KDS/GDS Data

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Monitor the "Supply Voltage" parameter in "Current Data" with KDS/GDS.

    Specification:  B+

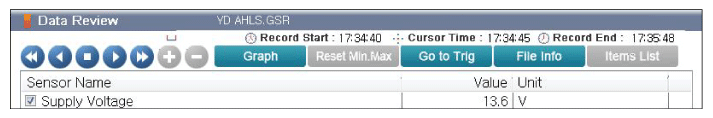

    Fig 1: Scantool Display - AHLS Battery Voltage During Engine ON
    G12158798Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
