Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY REMOVAL ")

  3. Disconnect the main connector (A).

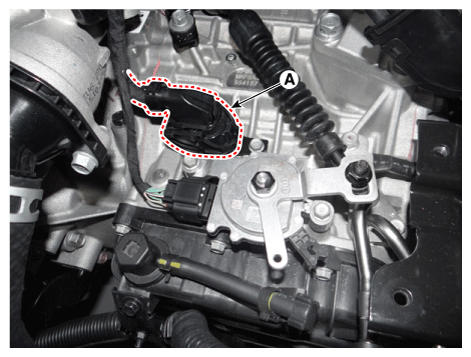

    Fig 1: Locating Main Connector
    G12293813Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between power terminal (14) and signal terminal (1).

    Specification  : 5.1 ± 0.3 Ω

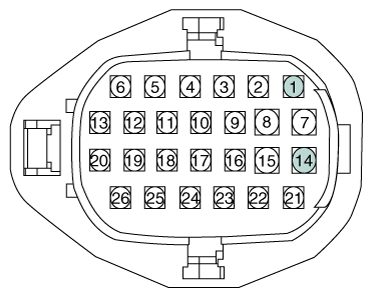

    Fig 2: Measure The Resistance Between Power Terminal (14) & Signal Terminal (1)
    G12293814Courtesy of KIA MOTORS AMERICA, INC.
