Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the PTC heater connector (A).

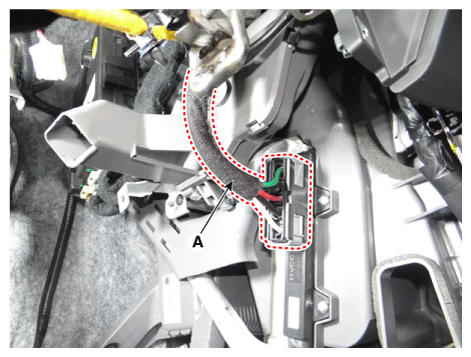

    Fig 1: Locating PTC Heater Connector
    G12288518Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the driver side shower duct (A) after loosening the screw.

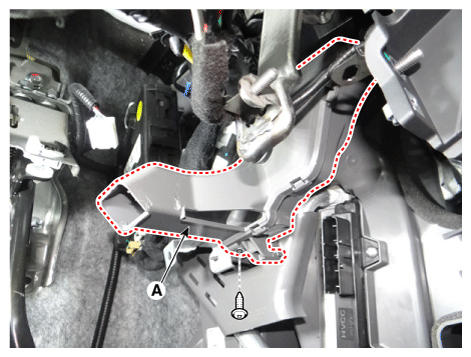

    Fig 2: Removing Driver Side Shower Duct Screw
    G12288519Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the smart key unit.

    (Refer to Body Electrical System - "SMART KEY UNIT ")

  6. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the screws.

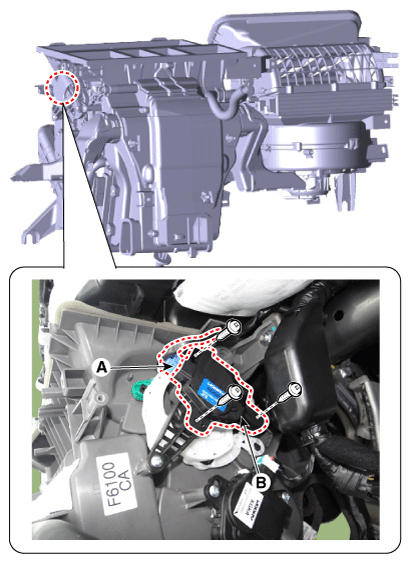

    Fig 3: Removing Mode Control Actuator Screws
    G12288520Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
