Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the rear door window glass.

   (Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

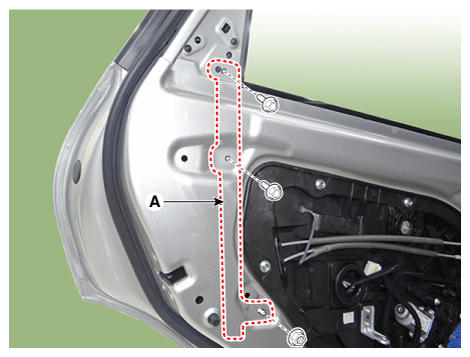

2. Remove the rear door channel (A) after loosening the mounting bolts and nut.

   Tightening Torque:

   Bolt: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

   Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

   Fig 1: Removing Rear Door Channel Mounting Bolts And Nut

   Courtesy of KIA MOTORS AMERICA, INC.

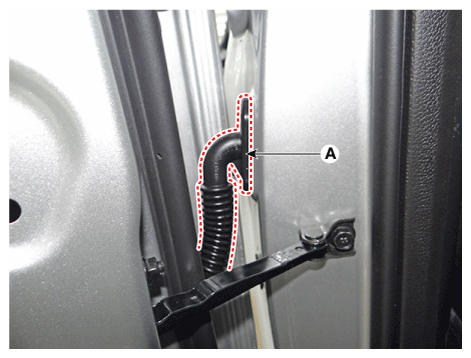

3. Disconnect the rear door main wiring connector cover (A).
   Fig 2: Locating Rear Door Main Wiring Connector Cover

   Courtesy of KIA MOTORS AMERICA, INC.

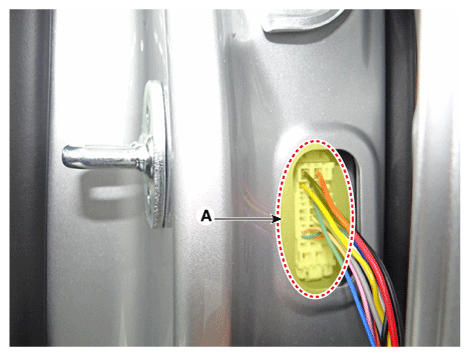

4. Disconnect the rear door main wiring connector (A).
   Fig 3: Locating Rear Door Main Wiring Connector

   Courtesy of KIA MOTORS AMERICA, INC.

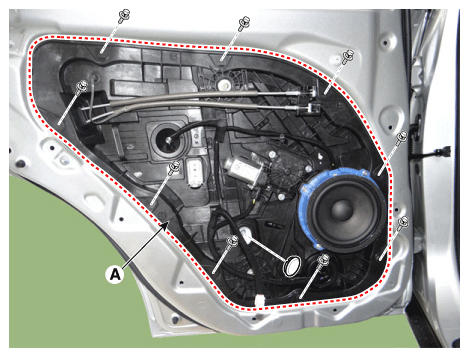

5. Remove the rear door module (A) after loosening the mounting bolts.

   Tightening Torque:

   Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

   Fig 4: Removing Rear Door Module Mounting Bolts

   Courtesy of KIA MOTORS AMERICA, INC.

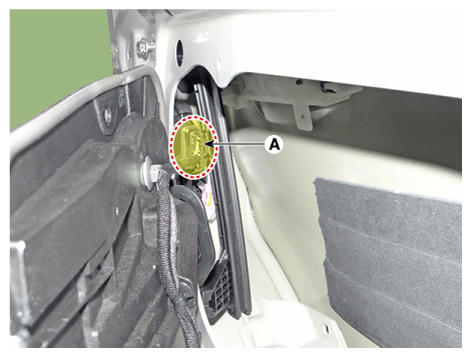

6. Disconnect the rear door latch connector (A).
   Fig 5: Locating Rear Door Latch Connector

   Courtesy of KIA MOTORS AMERICA, INC.

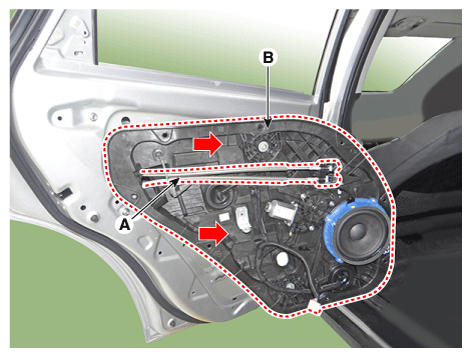

7. Remove the rear door module (B) from the inside handle (A) by pulling in the direction of the arrow.
   Fig 6: Removing Rear Door Module From Inside Handle

   Courtesy of KIA MOTORS AMERICA, INC.

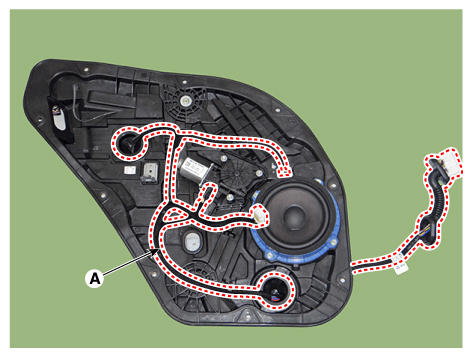

8. Remove the rear door main wiring (A).
   Fig 7: Locating Rear Door Main Wiring

   Courtesy of KIA MOTORS AMERICA, INC.
9. Remove the rear speaker.

   (Refer to Body Electrical System - "SPEAKERS ")

10. Remove the rear power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

11. Install in the reverse order of removal.

Information

• Apply enough grease onto the whole parts.
• Make sure that connectors are connected properly and each rod is connected securely.
• Make sure that the door locks/unlocks and opens/closes properly.
