Seat Control Switch

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

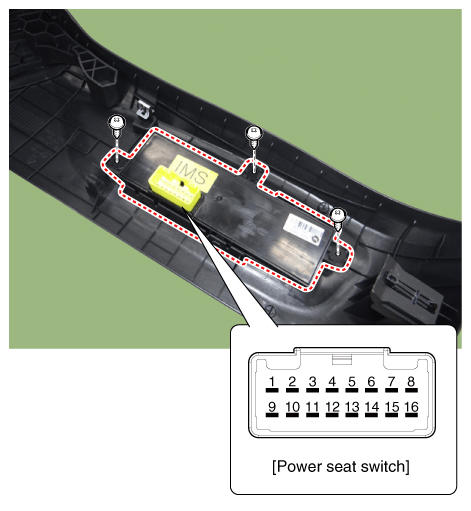

Fig 1: Seat Control Switch Connector Terminal

G12335048

Courtesy of KIA MOTORS AMERICA, INC.

[Power Seat Control Switch]

(Non-IMS Type)

Fig 2: Power Seat Control Switch Terminal Continuity Chart (Non-IMS Type; 1 Of 3)

G12335049

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Power Seat Control Switch Terminal Continuity Chart (Non-IMS Type; 2 Of 3)

G12335050

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Power Seat Control Switch Terminal Continuity Chart (Non-IMS Type; 3 Of 3)

G12335051

Courtesy of KIA MOTORS AMERICA, INC.

(IMS Type)

Fig 5: Power Seat Control Switch Terminal Continuity Chart (IMS Type; 1 Of 3)

G12335052

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Power Seat Control Switch Terminal Continuity Chart (IMS Type; 2 Of 3)

G12335053

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Power Seat Control Switch Terminal Continuity Chart (IMS Type; 3 Of 3)

G12335054

Courtesy of KIA MOTORS AMERICA, INC.
