Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

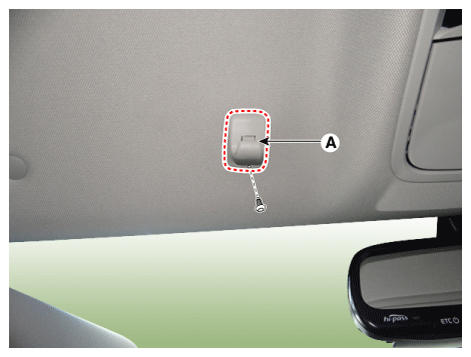

Remove the retainer (A) after loosening the mounting screw.

Fig 1: Locating Retainer With Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Using a remover, separate the cap (A).

Fig 2: Locating Cap
Courtesy of KIA MOTORS AMERICA, INC.

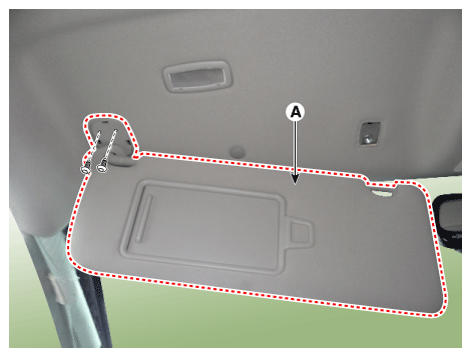

Separate the sunvisor (A) after loosening the mounting screw.

Fig 3: Locating Sunvisor With Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.

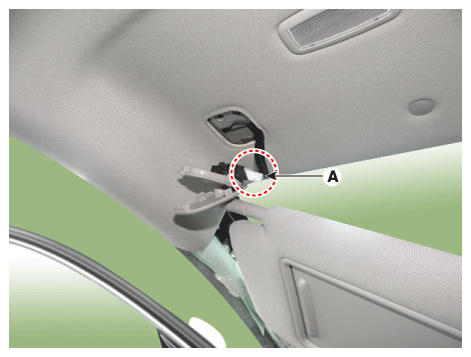

Disconnect the connector (A) and then remove the sunvisor (B).

Fig 4: Locating Sunvisor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
