Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the caps (A) and screws, then remove the assist handle (B).

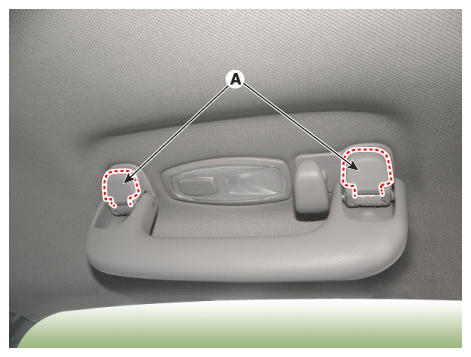

Fig 1: Locating Assist Handle Caps
Courtesy of KIA MOTORS AMERICA, INC.

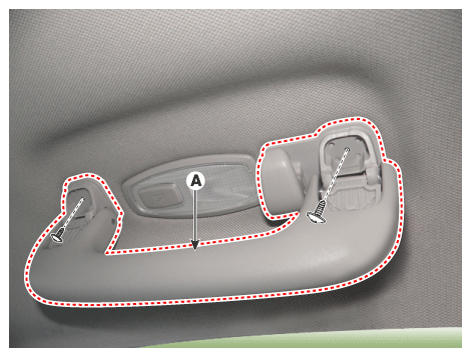

Fig 2: Locating Assist Handle With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
