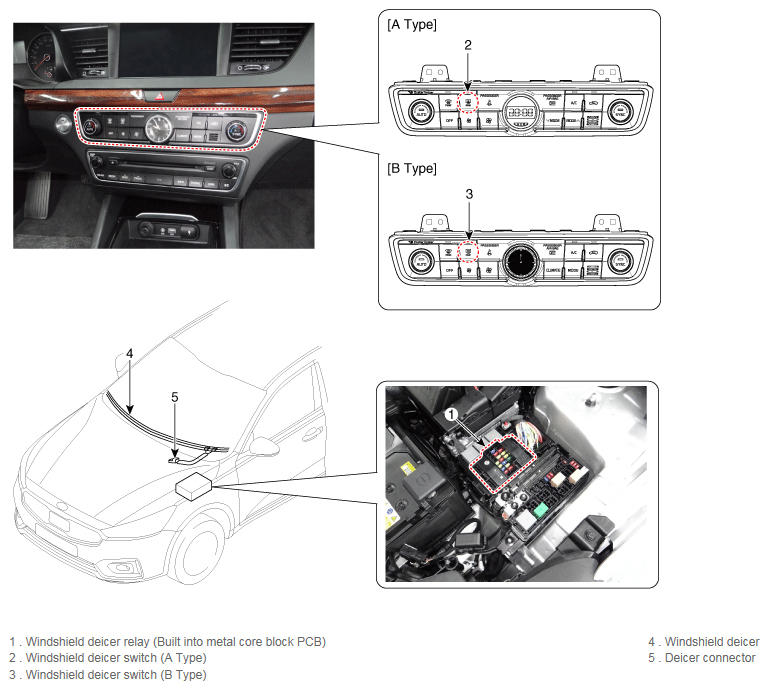

Components Location
Windshield deicer system prevents windshield wipers from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body control module receives an input signal from the front defroster switch, then controls relay.
When the front defroster switch is switched ON, and the engine is running with generator output, the deicer will be turned on for up to 20 minutes.
