Components And Components Location: Components

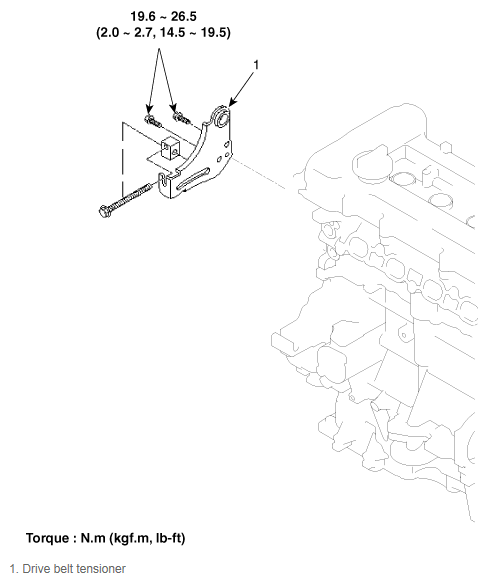

Fig 1: Drive Belt Tensioner With Torque Specifications

G11949865

Courtesy of KIA MOTORS AMERICA, INC.
