Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block - 1.6L >> Piston And Connecting Rod >> Components And Components Location >> Components

Components And Components Location: Components

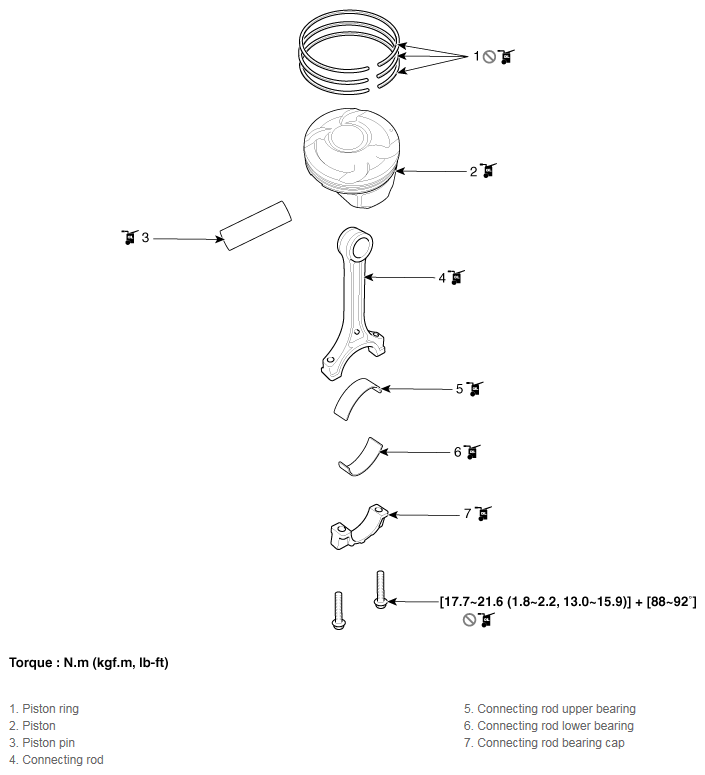

Fig 1: Piston And Connecting Rod Exploded View With Torque Specifications

G11949645

Courtesy of KIA MOTORS AMERICA, INC.
