Components And Components Location: Components

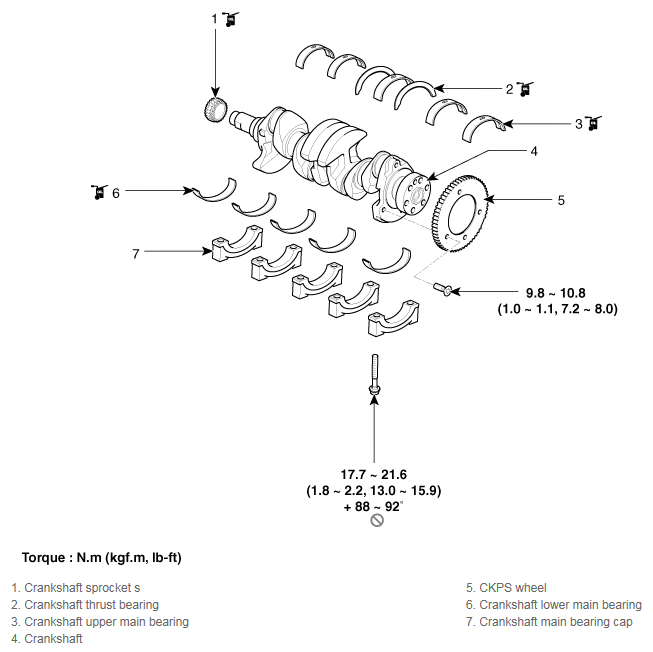

Fig 1: Crankshaft Exploded View With Torque Specifications

G11949666

Courtesy of KIA MOTORS AMERICA, INC.
