Dual Clutch Transmission Control System - Optima (Except HEV)
>>
DCT Control Module (TCM)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

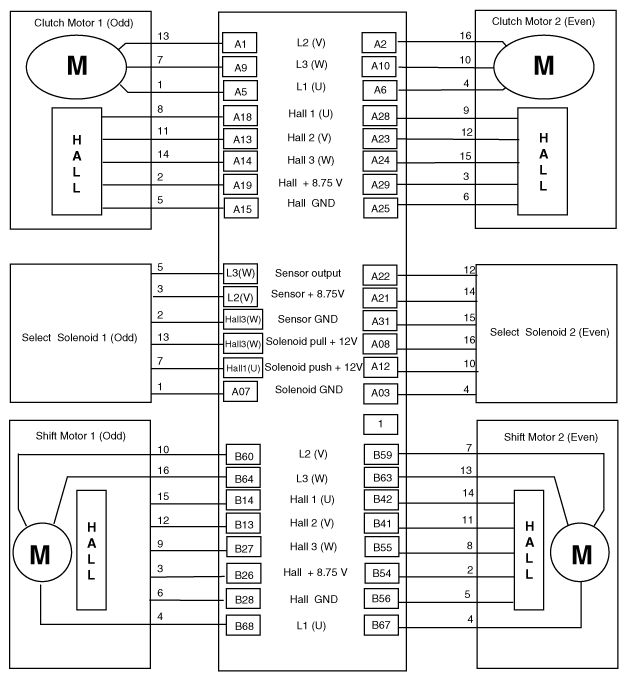

Fig 1: Clutch Motor Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

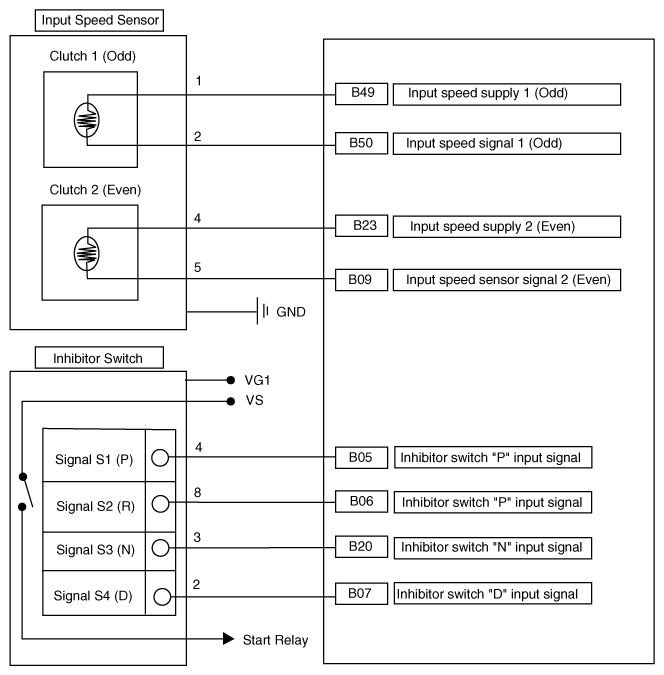

Fig 2: Clutch Motor Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
