Repair Procedures: Removal

Disconnect the battery negative (-) cable.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

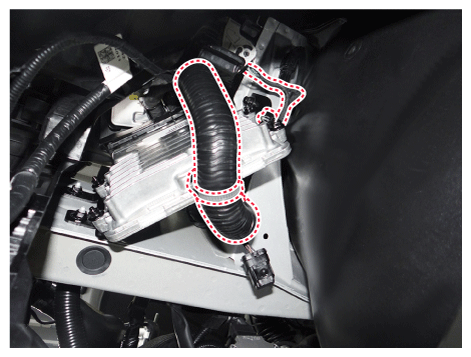

Remove the wiring from the TCM bracket.

Fig 1: Removing Wiring From TCM Bracket
Courtesy of KIA MOTORS AMERICA, INC.

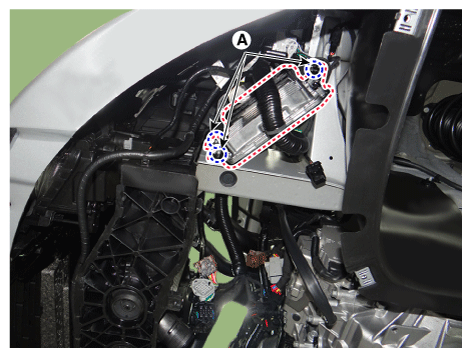

Loosen the TCM mounting nut (A).

Fig 2: Locating TCM Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the TCM connector.

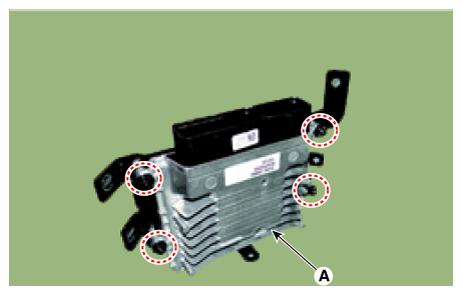

Remove the TCM from the bracket by loosening the nuts.

Fig 3: Disconnecting TCM Connector

Courtesy of KIA MOTORS AMERICA, INC.
