Monitor DTC Status

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)" with GDS.

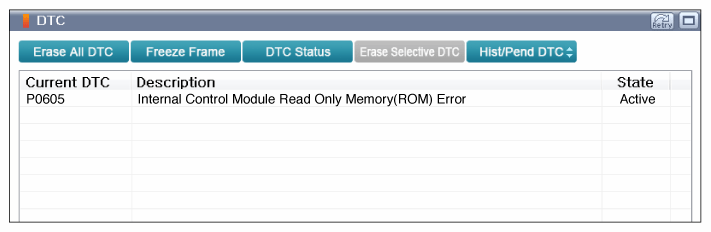

    Fig 1: Screen Display - DTC Description
    G11809930Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO
