Home >> Kia >> 2016 >> Forte5 SX, Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Cylinder Block - 1.6L >> Components And Components Location >> Components

Components And Components Location: Components

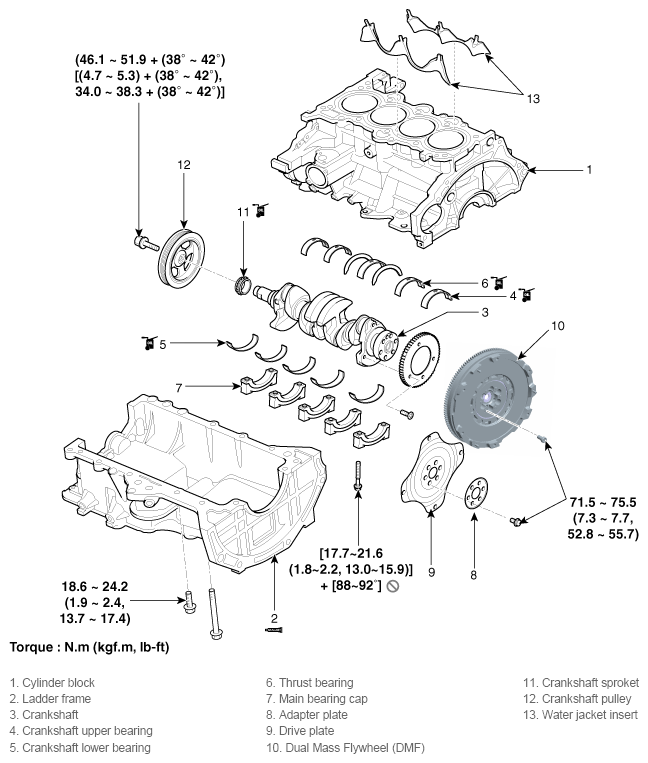

Fig 1: Exploded View Of Cylinder Block With Torque Specification (1 Of 2)
G11794475Courtesy of KIA MOTORS AMERICA, INC.

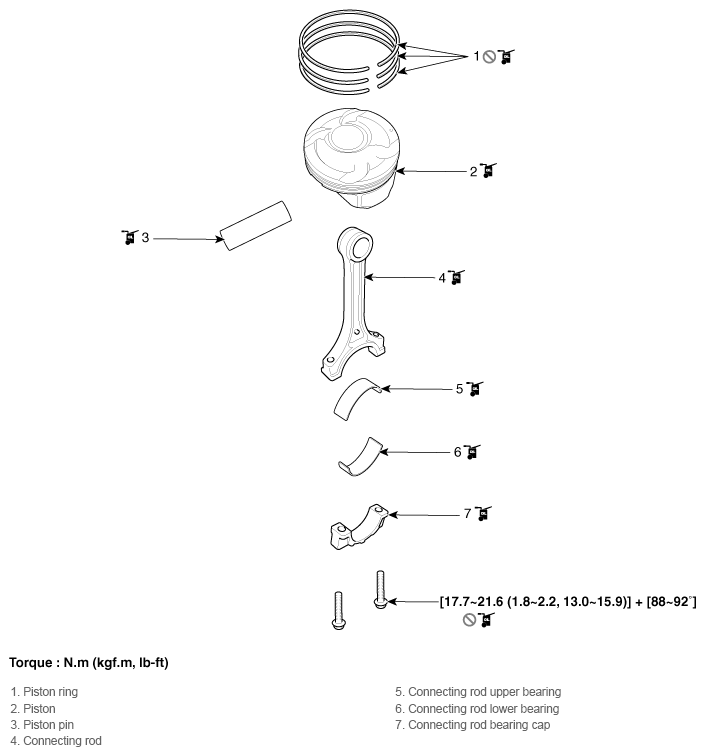

Fig 2: Exploded View Of Cylinder Block With Torque Specification (2 Of 2)
G11794476Courtesy of KIA MOTORS AMERICA, INC.
