TPMS Inspection method: Notes

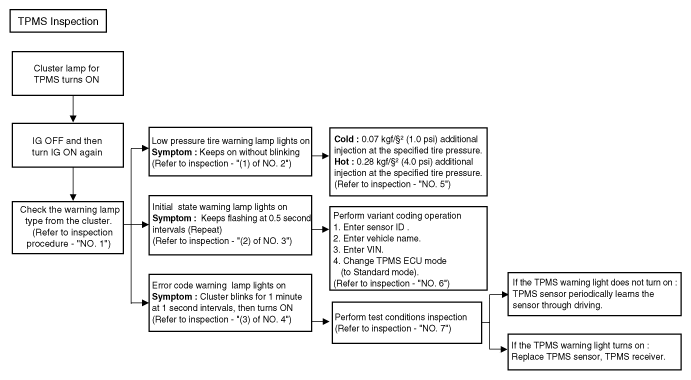

Fig 1: TPMS Inspection Flow Chart

G11795485

Courtesy of KIA MOTORS AMERICA, INC.
