Repair Procedures: Replacement

[Driver's Side]

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.

   (Refer to Body - "CRASH PAD LOWER PANEL ")

3. Remove the driver's side shower duct by loosening the screw.
4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.

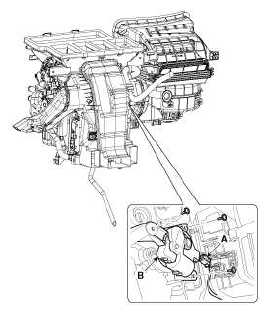

   Fig 1: Remove Temperature Control Actuator - Driver's Side

   Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.

[Passenger's side]

1. Disconnect the negative (-) battery terminal.
2. Remove the glove box housing.

   (Refer to Body - "GLOVE BOX HOUSING ")

3. Remove the passenger's side shower duct by loosening the screw.
4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
   Fig 2: Remove Temperature Control Actuator - Passenger's Side

   Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.
