Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the driver's side shower duct by loosening the screw.
  4. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.

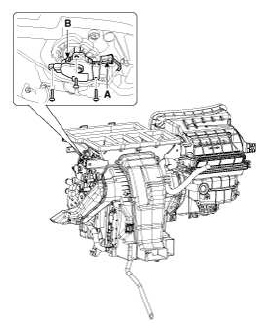

    Fig 1: Loosen Mode Control Actuator Mounting Screws
    G11793045Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
