Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/recycling/charging station.
  3. When the engine is cool, drain the engine coolant from the radiator.

    (Refer to Engine Mechanical System - "COOLANT ")

  4. Remove the bolts (A) and the expansion valve (B) from the evaporator core.

    Tightening torque:

    7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    Fig 1: Remove Evaporator Core Expansion Valve Bolts
    G11793023Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
    • When installing, replace with a new O-ring.
  5. Disconnect the inlet (C) and outlet (D) heater hoses from the heater unit.

    Tightening Torque:

    7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    Fig 2: Disconnect Inlet And Outlet Heater Hoses From Heater Unit
    G11793024Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Engine coolant will run out when the hoses are disconnected; drain it into a clean drip pan. Be sure not to let coolant spill on electrical parts or painted surfaces. If any coolant spills, rinse it off immediately.
  6. Remove the cowl top cover.

    (Refer to COWL TOP COVER - FORTE/FORTE KOUP

  7. Remove the front wiper motor.

    (Refer to Body Electrical System - "FRONT WIPER MOTOR ")

  8. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  9. Remove the front pillar trim.

    (Refer to Body - "FRONT PILLAR TRIM ")

  10. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  11. Remove the shift lever assembly.

    (Refer to Manual Transaxle System - "SHIFT LEVER ")

    (Refer to Automatic Transaxle Control System - "SHIFT LEVER ")

  12. Remove the cowl side trim.

    (Refer to Body - "COWL SIDE TRIM ")

  13. Remove both sides of the crash pad side cover.

    (Refer to Body - "CRASH PAD SIDE COVER ")

  14. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  15. Remove the steering wheel and column.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  16. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  17. After loosening the mounting nut, remove the console duct (A).
    Fig 3: Remove Console Duct
    G11793025Courtesy of KIA MOTORS AMERICA, INC.
  18. Disconnect the passenger compartment junction box connectors (A).
    Fig 4: Locate Passenger Compartment Junction Box Connectors
    G11793026Courtesy of KIA MOTORS AMERICA, INC.
  19. Disconnect the multi box connectors (A).

    [Driver's side]

    Fig 5: Locate Multi Box Connectors - Driver's Side
    G11793027Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger's Side]

    Fig 6: Locate Multi Box Connectors - Passenger's Side
    G11793028Courtesy of KIA MOTORS AMERICA, INC.
  20. Disconnect the airbag control module (SRSCM) connector (A).
    Fig 7: Locate Airbag Control Module (SRSCM) Connector
    G11793029Courtesy of KIA MOTORS AMERICA, INC.
  21. Remove the wiring mounting clips (A).
  22. Disconnect the shift lever connector (B).
    Fig 8: Locate Shift Lever Connector
    G11793030Courtesy of KIA MOTORS AMERICA, INC.
  23. Disconnect the connectors (A) and the mounting clips in the front pillar.

    [Passenger's side]

    Fig 9: Locate Front Pillar Connectors - Passenger's Side
    G11793031Courtesy of KIA MOTORS AMERICA, INC.
  24. Loosen the mounting bolts.
    Fig 10: Loosen Heater Unit Mounting Bolts
    G11793032Courtesy of KIA MOTORS AMERICA, INC.
  25. Loosen the cowl cross member assembly mounting bolts (A).

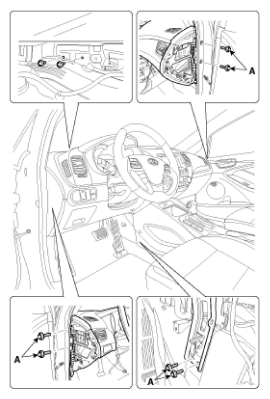

    Fig 11: Loosen Cowl Cross Member Assembly Mounting Bolts
    G11793033Courtesy of KIA MOTORS AMERICA, INC.
  26. Loosen the drain hose fixing clip under the vehicle.
  27. Disconnect the heater and blower unit connectors.
  28. Remove the heater & blower unit (A) from the crash pad after loosening the mounting nuts.
    Fig 12: Remove Heater Blower Unit From Crash Pad
    G11793034Courtesy of KIA MOTORS AMERICA, INC.
  29. Separate the blower unit from the heater unit after loosening the screws.

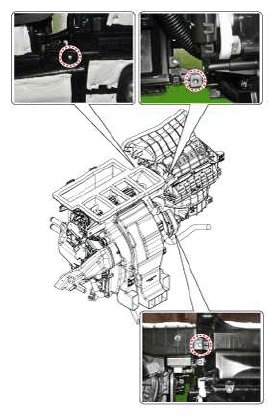

    Fig 13: Locate Blower Unit Separating Bolts
    G11793035Courtesy of KIA MOTORS AMERICA, INC.
  30. Install in the reverse order of removal.
