Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening the screw.

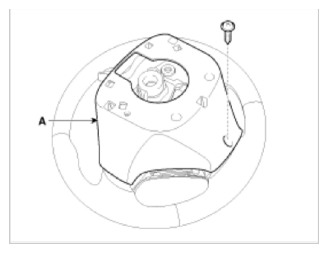

Fig 1: Steering Wheel Cover And Screw
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering heater connectors (A).

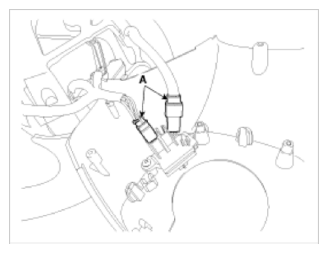

Fig 2: Steering Heater Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering remote control switch assembly after loosening the mounting screws (4EA).

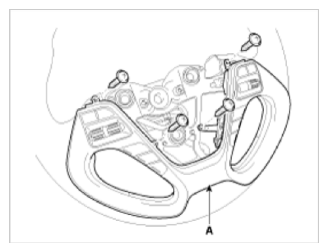

Fig 3: Steering Remote Control Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the switch connectors (A).

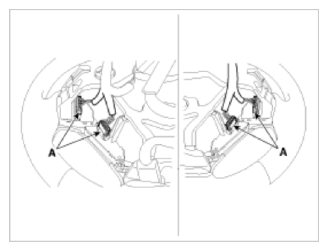

Fig 4: Steering Remote Control Switch Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the remote control switch (A) after loosening the mounting screws.

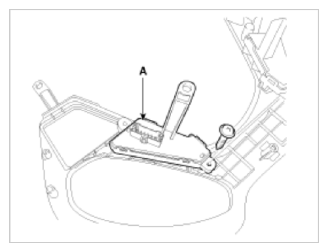

Fig 5: Remote Control Switches And Mounting Screw (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

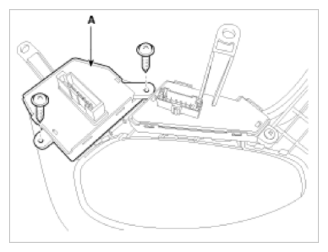

Fig 6: Remote Control Switches And Mounting Screw (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
