Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the hood latch connector (A).

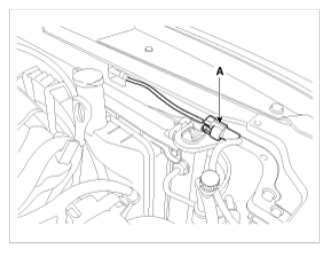

Fig 1: Hood Latch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the hood latch assembly (A) mounting bolts.
Tightening Torque:

7.8 ~ 11.8N.m (0.8 ~ 1.2kgf.m, 5.8 ~ 8.7 lb-ft)

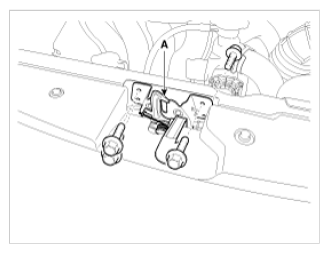

Fig 2: Hood Latch Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the hood latch release handle cable (B) and remove the hood latch assembly (A).

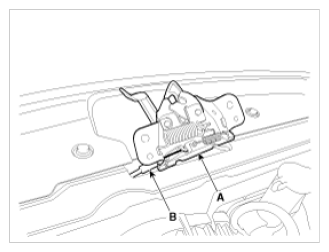

Fig 3: Hood Latch Release Handle Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
