Error Handling
LIN BUS OFF ERROR CASE
| Type of Error | Error recognition condition | Error releasing condition |
|---|---|---|
| Initial Routine | LIN BUS OFF sensing once | Error is not released in initial mode. |
| Normal Routine | LIN BUS OFF is sensed times in a row | The fault is released when BCM or LIN Master senses LIN BUS ON four times in a row in normal mode |
* Remark:
- In fault counting, output message or signal should be transmitted as a Last Valid value.
- Error in initial mode, fault buzzer(BCM) is operated with fault display(cluster).
- Error in normal mode, fault is only displayed on Cluster without buzzer.
SENSOR FAULT
| Type of Error | Error recognition condition | Error releasing condition |
|---|---|---|
| Initial Routine | Sensor fault Message sensing once | Error is not released in initial mode. |
| Normal Routine | Sensor fault Message sensing four times in a row | The fault is released when BCM or LIN Master senses LIN BUS ON four times in a row in normal mode |

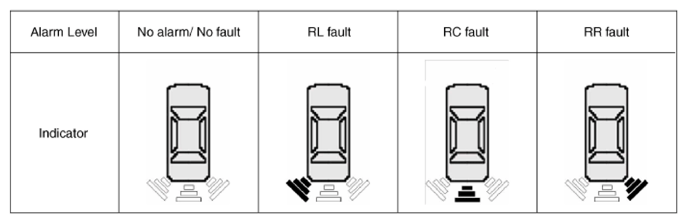

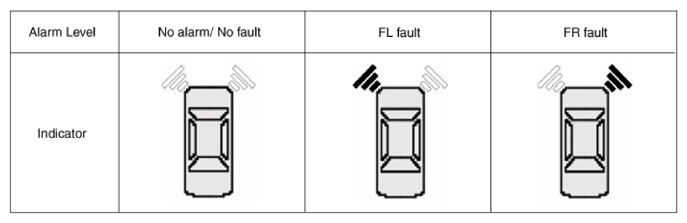

* In fault display, RCR/RCL indicator is displayed individually
* Remark:
- In fault counting, output message or signal should be transmitted as a Last Valid value.
- Error in initial mode, fault buzzer(BCM) is operated with fault display(cluster).
- Error in normal mode, fault is only displayed on Cluster without buzzer.
- When the error occurs in direct condition, the sensors sent the same status of error for indirect condition.
