Circuit Diagram

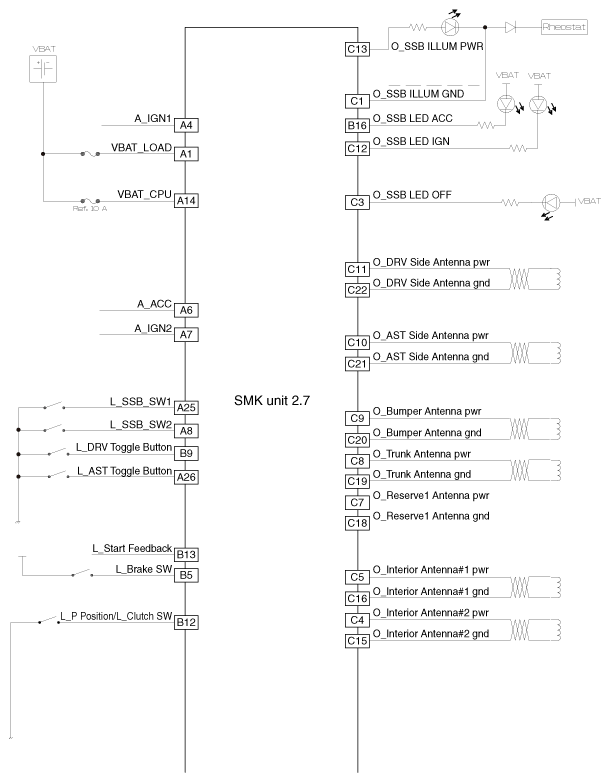

Fig 1: RF Receiver Unit Circuit Diagram (1 Of 2)

G11785564

Courtesy of KIA MOTORS AMERICA, INC.

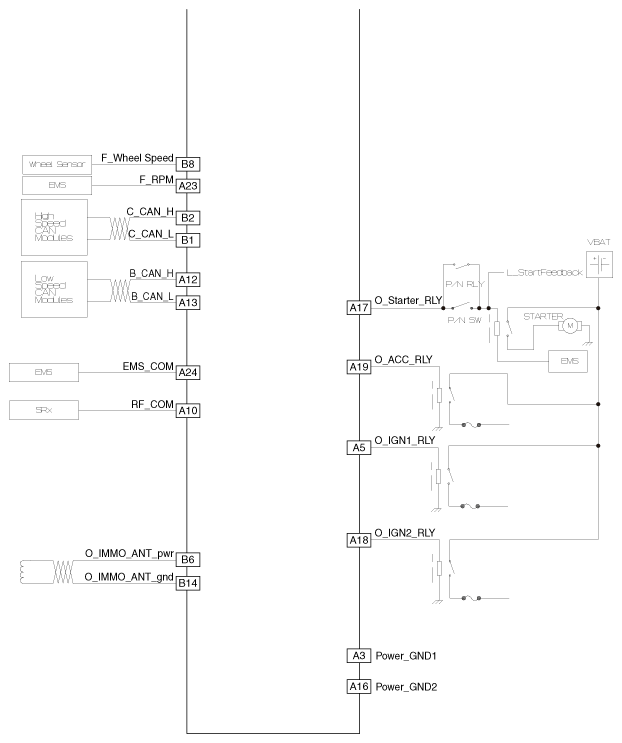

Fig 2: RF Receiver Unit Circuit Diagram (2 Of 2)

G11785565

Courtesy of KIA MOTORS AMERICA, INC.
