Components and Components Location: Components

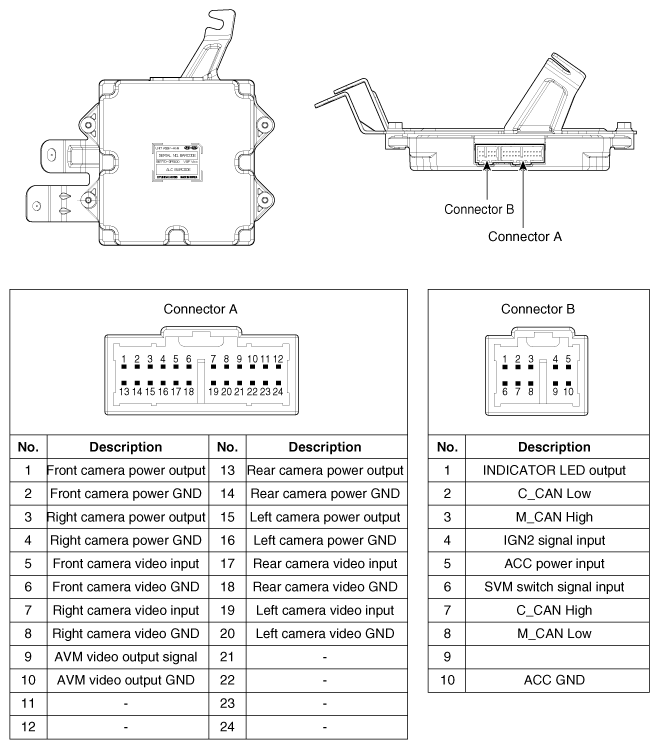

Fig 1: Surround View Monitoring Unit Connector Terminals

G11786293

Courtesy of KIA MOTORS AMERICA, INC.
