[Sensor Status Initialization]

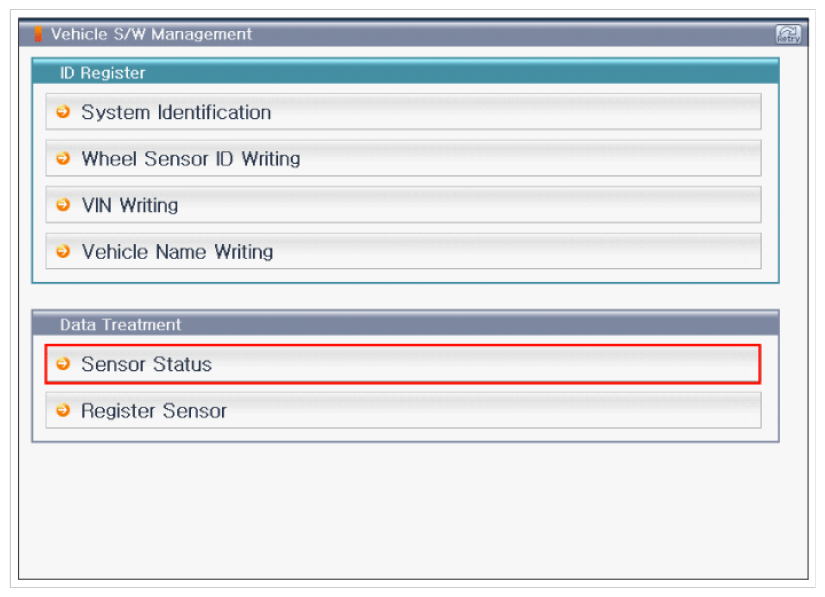

Fig 1: Display Sensor Status (1 Of 6)

G09773366

Courtesy of KIA MOTORS AMERICA, INC.

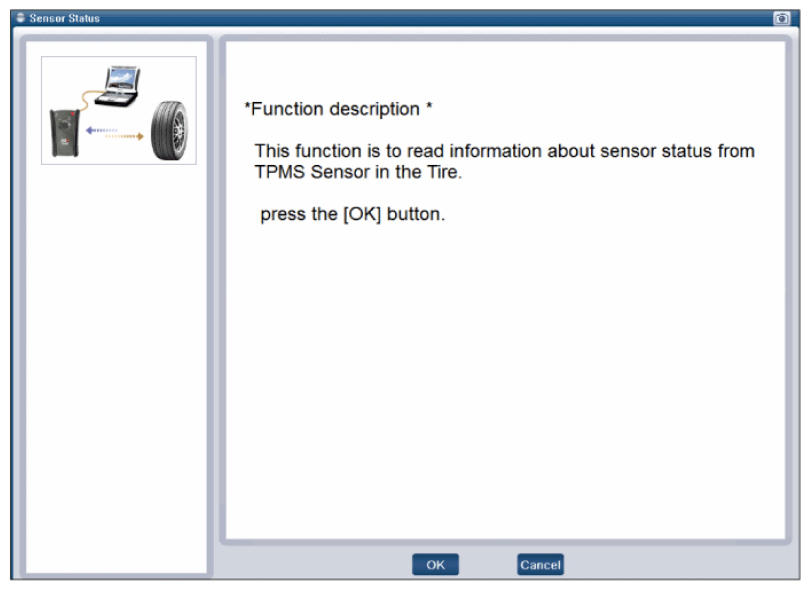

Fig 2: Display Sensor Status (2 Of 6)

G09773367

Courtesy of KIA MOTORS AMERICA, INC.

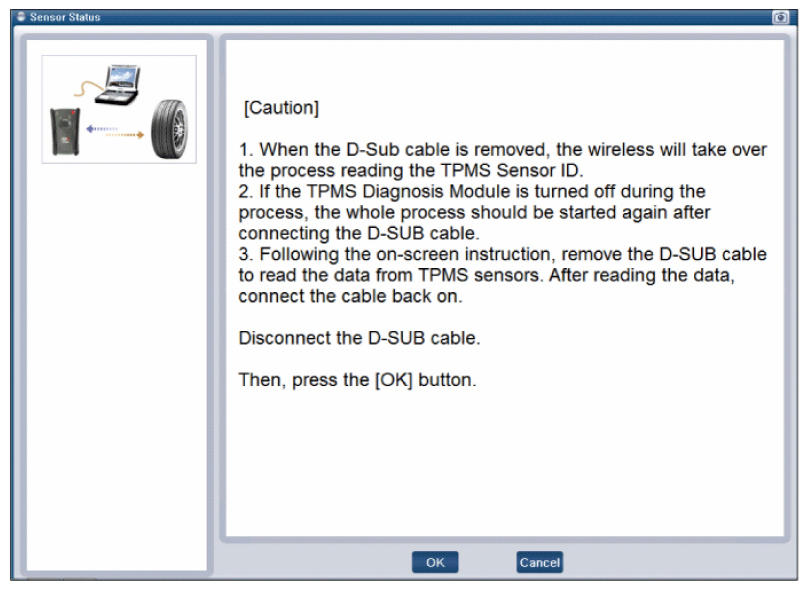

Fig 3: Display Sensor Status (3 Of 6)

G09773368

Courtesy of KIA MOTORS AMERICA, INC.

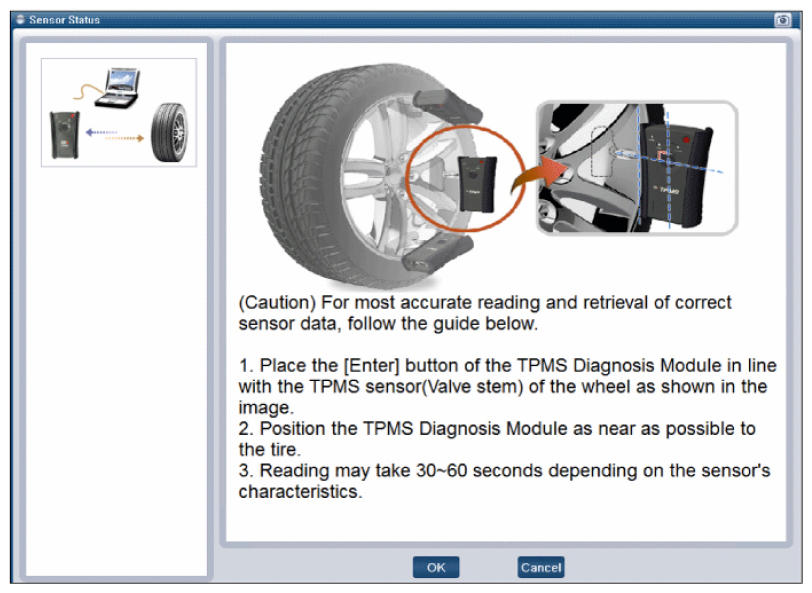

Fig 4: Display Sensor Status (4 Of 6)

G09773369

Courtesy of KIA MOTORS AMERICA, INC.

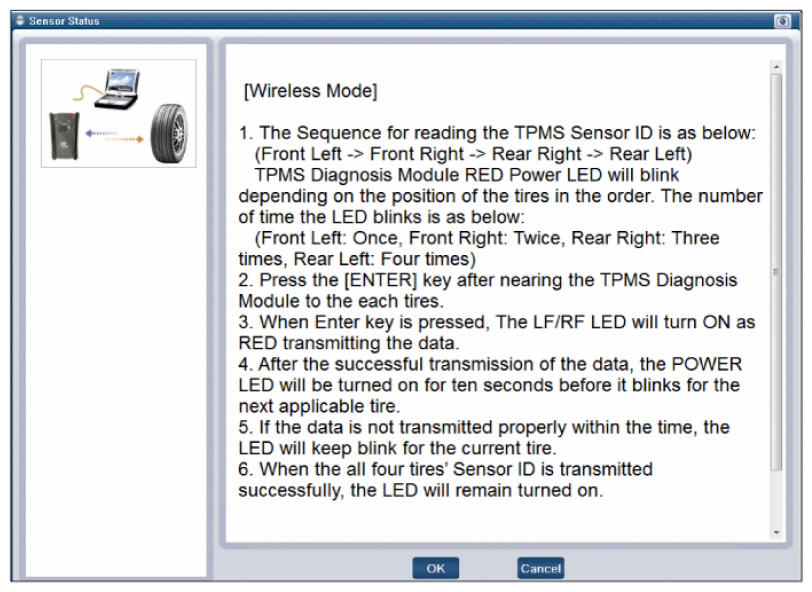

Fig 5: Display Sensor Status (5 Of 6)

G09773370

Courtesy of KIA MOTORS AMERICA, INC.

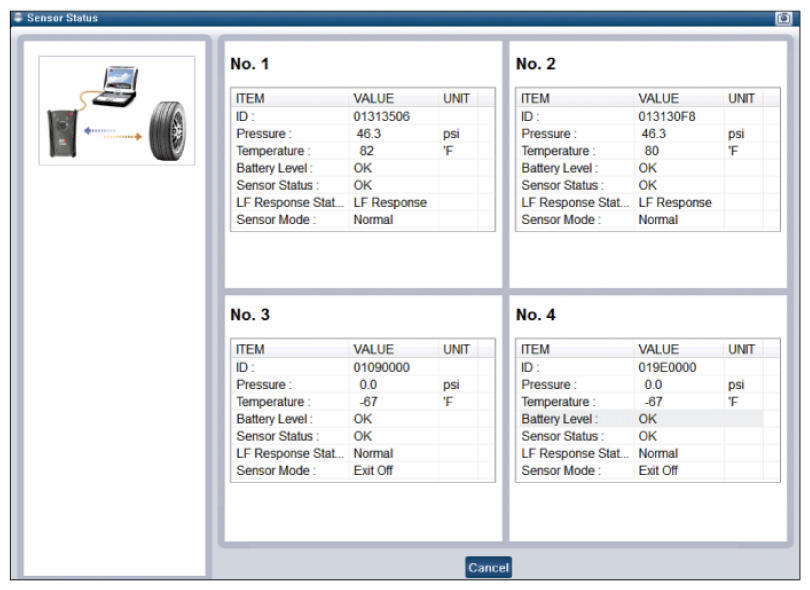

Fig 6: Display Sensor Status (6 Of 6)

G09773371

Courtesy of KIA MOTORS AMERICA, INC.
