Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the clutch switch connector (A).
  3. Remove the clutch switch (B).

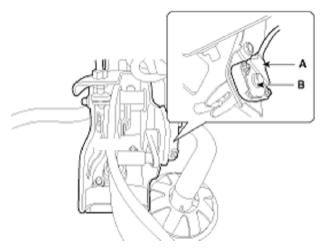

    Fig 1: Clutch Switch And Connector
    G09773144Courtesy of KIA MOTORS AMERICA, INC.
