Special Service Tools: Notes
WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
| Tool Name/Number | Illustration | Description |
|---|---|---|
| High Voltage Power Extension Cable 0K918-E4100 |
Used for measuring the high voltage battery system | |
| High Voltage Battery Check Extension Cable (21pin) 0K375-E4100 |
Used for measuring the high voltage battery system | |
| High Voltage Battery Check Extension Cable (8pin) 0K375-E4200 |
Used for measuring the high voltage battery system | |
| Insulated Tool Set 0K375-4U000 |
Used for measuring or work to high voltage parts -22EA components (Include case) | |
| HV Battery Assembly Lifting Fixture 0K375-E4300 |
Removing and installing battery pack assembly |
Information

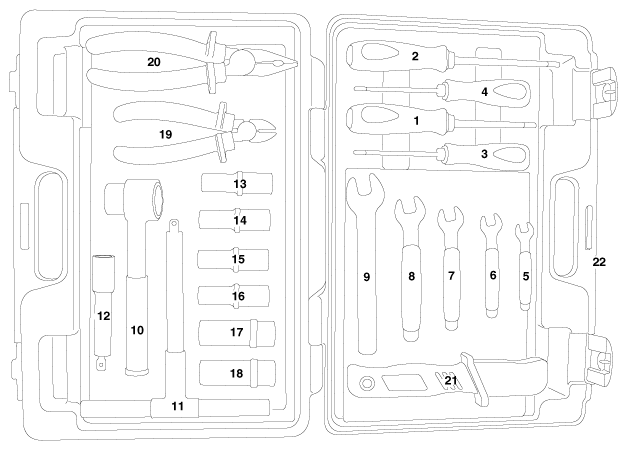

| No. | Tool Name | Tool Number |
|---|---|---|
| 1 | Insulated Flat Head Screwdriver-6" | 0K375-4U100 |
| 2 | Insulated Phillips Screwdriver-6" | 0K375-4U110 |
| 3 | Insulated Flat Head Screwdriver-4" | 0K375-4U120 |
| 4 | Insulated Phillips Screwdriver-4" | 0K375-4U130 |
| 5 | Insulated Spanner-8mm | 0K375-4U140 |
| 6 | Insulated Spanner-10mm | 0K375-4U150 |
| 7 | Insulated Spanner-12mm | 0K375-4U160 |
| 8 | Insulated Spanner-12mm | 0K375-4U170 |
| 9 | Insulated Spanner-17mm | 0K375-4U180 |
| 10 | Insulated Ratchet Wrench-3/8" | 0K375-4U190 |
| 11 | Insulated Ratchet Wrench-3/8" | 0K375-4U200 |
| 12 | Insulated Socket Extension Bar-3/8" | 0K375-4U210 |
| 13 | Insulated Socket-8mm | 0K375-4U220 |
| 14 | Insulated Socket-10mm | 0K375-4U230 |
| 15 | Insulated Socket-12mm | 0K375-4U240 |
| 16 | Insulated Socket-14mm | 0K375-4U250 |
| 17 | Insulated Socket-17mm | 0K375-4U260 |
| 18 | Insulated Socket-19mm | 0K375-4U270 |
| 19 | Insulated Nippers-6" | 0K375-4U280 |
| 20 | Insulated Pliers-8" | 0K375-4U290 |
| 21 | Insulated Cutter | 0K375-4U300 |
| 22 | Insulated Tool Box | 0K375-4U310 |
