Sorento EX, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Tailgate Module
>>
Power Tailgate Unit
>>
Schematic Diagram
>>
Circuit Diagram
Circuit Diagram

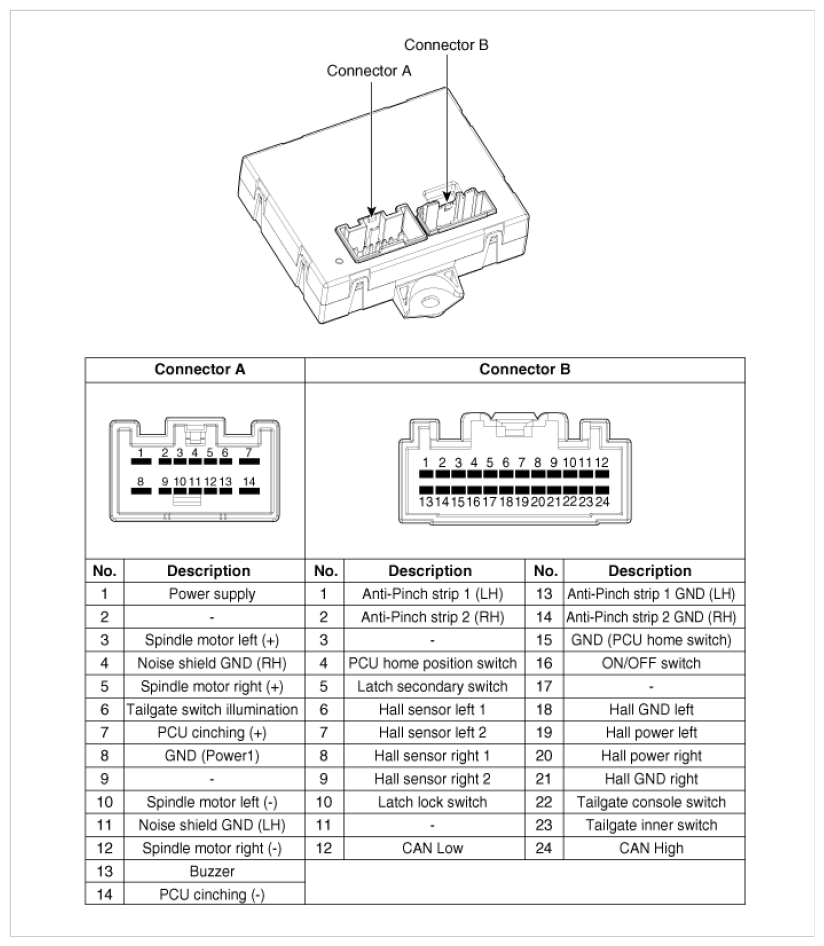

Fig 1: Connector A And Connector B
Courtesy of KIA MOTORS AMERICA, INC.
