Component Inspection

■ Visual Check(HO2S(B2S1))

1. IG "OFF" and disconnect HO2S(B2S1) connector.
2. Check that HO2S(B2S1) is contaminated or damaged by foreign materials.

■ Check HO2S(B2S1) performance

1. Warm up the engine to normal operating temperature.
2. Connect VMI to GDS and select "Oscilloscope".
3. Connect Channel A positive probe to Pin No. 1 (high) and Channel A negative probe to Pin No. 2 (low).

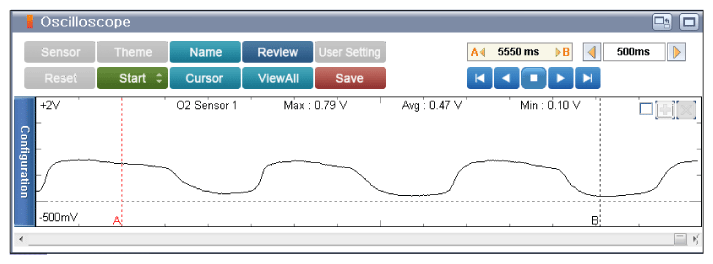

Fig 1: Screen Display - Signal Waveform Of O2S1 At Normal Condition

Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the HO2S(B2S1) operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • If no problems were found with the circuits or connectors, replace the HO2S(B2S1) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
