Components And Components Location: Components

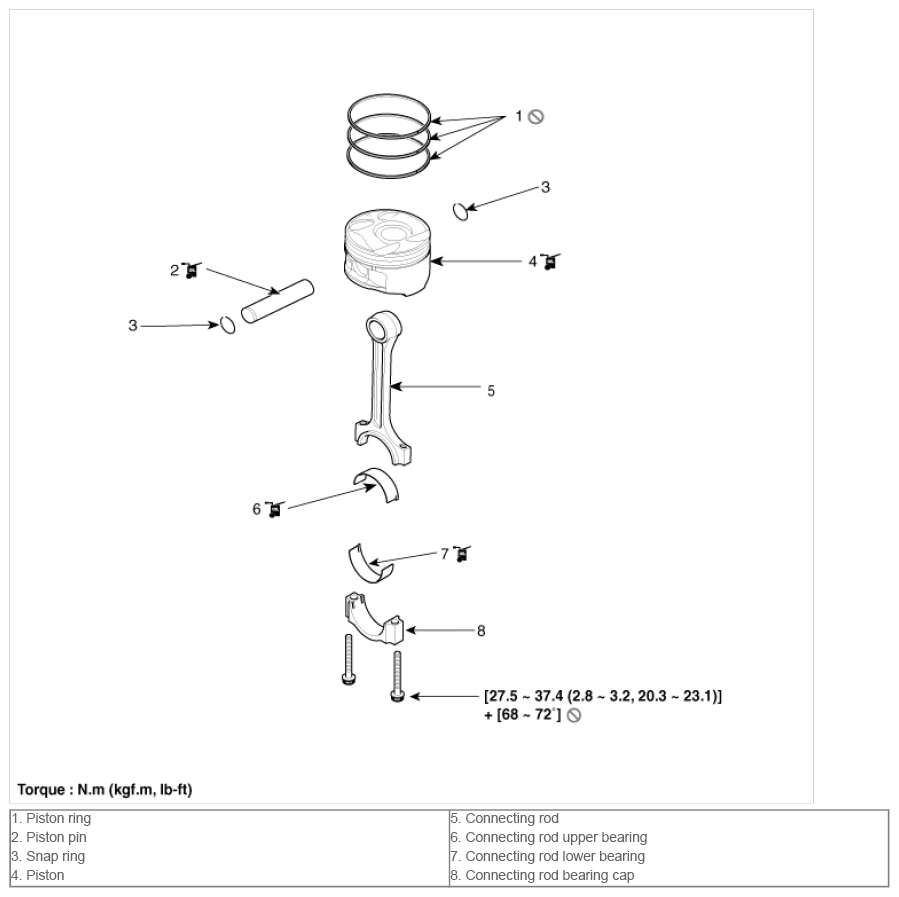

Fig 1: Exploded View Of Piston And Connecting Rod Components With Torque Specifications

G09750892

Courtesy of KIA MOTORS AMERICA, INC.
