Incorrectly Routed High Pressure A/C Line (CCPS300)
Publication date: 2014-05-01Reference number: CCPS300
INCORRECTLY ROUTED HIGH PRESSURE A/C LINE
TECHNICAL SERVICE BULLETIN
Reference Number(s): CCPS300, Date of Issue:
May 2014
| KIA: | 2014 Soul (PS) |
| GROUP: | Climate Control |
SERVICE INFORMATION

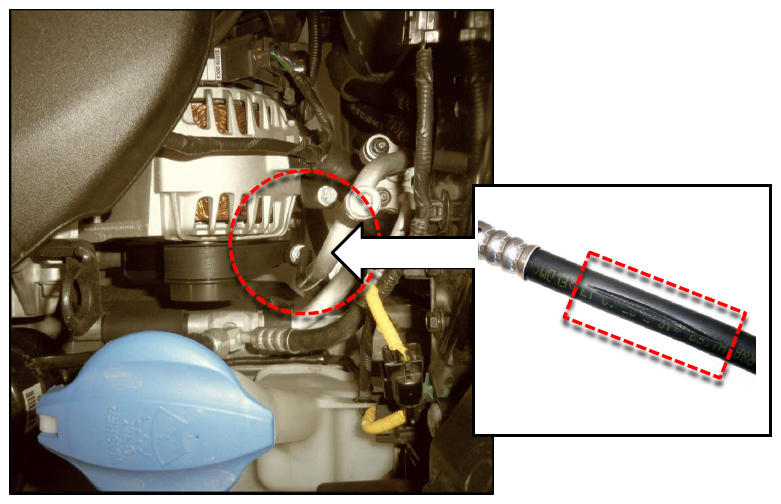

Some 2014 Soul (PS) produced prior to February 7, 2014, may exhibit a concern related to poor performance from the A/C system, accompanied by low refrigerant. In such cases, check the routing for the A/C high pressure line to make sure it is not coming into contact with the accessory drive belt (see image). If the line has come into contact with the belt and has sustained damage, replace the line and recharge the system to resolve the concern.
