Engine Oil Schemetics

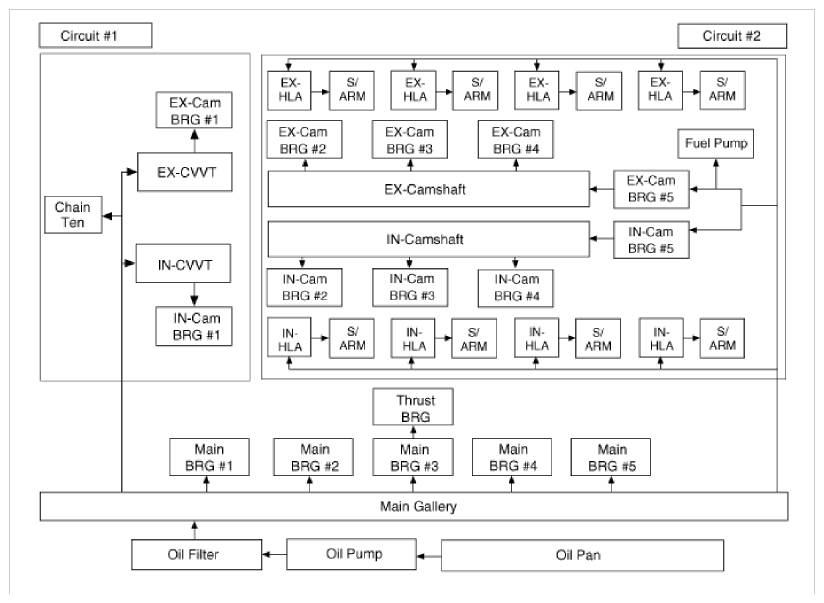

Fig 1: Engine Oil Schematics Diagram

G09778989

Courtesy of KIA MOTORS AMERICA, INC.
