Charging System - 2.0L: Battery: Troubleshooting

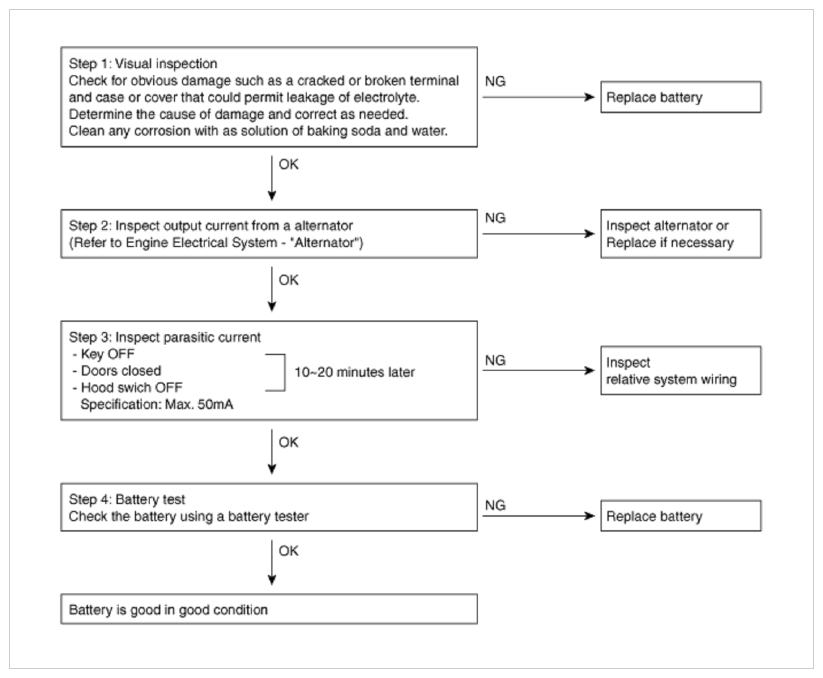

Fig 1: Troubleshooting Chart

G09779098

Courtesy of KIA MOTORS AMERICA, INC.
