Repair procedures: Removal

CAUTION: Handle the sensor with care.
  1. Remove the tire.

    (Refer to "TIRE ")

  2. Remove the valve nut.

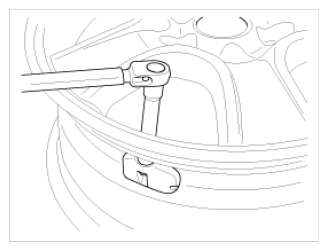

    Fig 1: Removing Valve Nut
    G09743549Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The valve nut should not be re-used.
  3. Discard the valve assembly.
