Harness Connector

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

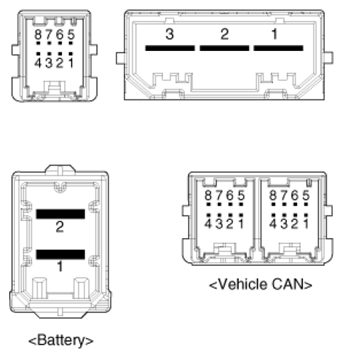

Fig 1: Steering System Harness Connector End Views
G07424225Courtesy of KIA MOTORS AMERICA, INC.
PIN DESCRIPTION CHART

Type Pin No Description
Battery 1 Battery -
2 Battery +
Vehicle 1 IGN
2 -
3 -
4 -
5 -
6 -
7 High_CAN
8 Low_CAN
