Driver Power Seat Control Switch (For IMS)

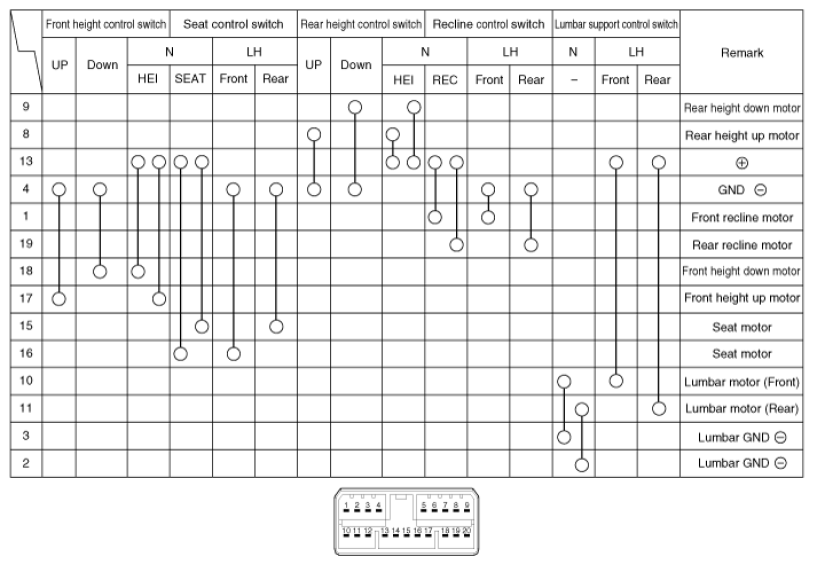

Fig 1: Driver Power Seat Control Switch Terminals Continuity Chart (For IMS)

G08309222

Courtesy of KIA MOTORS AMERICA, INC.
